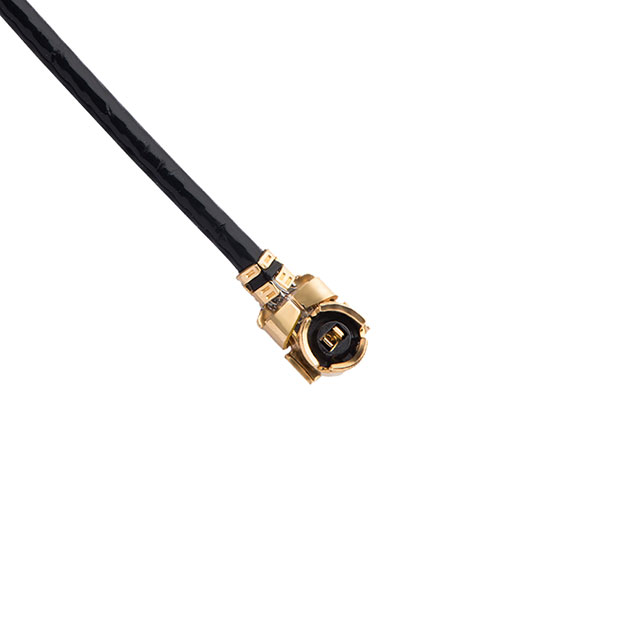

2144280001
Or copy the link below:
- Mfr.Part #
- 2144280001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- WI-FI/BLUETOOTH EXT ANTENNA I-PE
- Stock
- 813
- In Stock ：
- 813
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- RF Antennas
- Frequency Range :
- 2.4 GHz
- Center Frequency :
- 2450 MHz
- VSWR :
- -
- Connector Type :
- SMA
- Number of Bands :
- 1 Band
- Weight :
- 6g
- Frequency (Center/Band) :
- 2.45GHz
- Packaging :
- Bulk
- Diameter :
- 9.35 mm
- Type :
- Passive Antenna
- RoHS :
- Details
- Base Product Number :
- 214428
- Termination :
- IPEX MHF
- Height (Max) :
- 4.094 (104.00mm)
- Ingress Protection :
- -
- Return Loss :
- -8dB
- Width :
- 9.35mm
- Polarization :
- Linear
- Product Status :
- Active
- Product :
- Outdoor Antennas
- Rad Hardened :
- No
- Length :
- 104 mm
- Cable Type :
- 104 mm Coax
- Antenna Connector Type :
- IPEX MHF
- Series :
- 214428
- RF Family/Standard :
- 802.15.4, Bluetooth, WiFi
- Component Type :
- External Antenna
- Antenna Gain :
- 5.3dBi
- Mounting Type :
- PCB
- Style :
- Tilt/Swivel
- Gain :
- 3.1 dBi
- Applications :
- Bluetooth, Wi-Fi, Zigbee™
- Package :
- Bag
- Mounting Style :
- Snap in
- Antenna Type :
- Whip, Tilt
- Termination Style :
- Connector
- Features :
- Cable - 100mm
- Frequency Group :
- UHF (2GHz ~ 3GHz)
- Datasheets
- 2144280001
214428-0001 datasheet pdf and RFID Antennas product details from Molex stock available at
