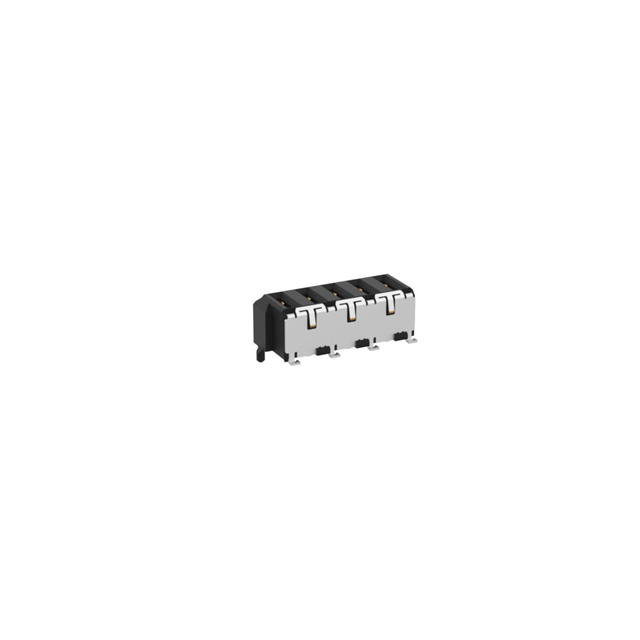

214356

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Number of Contacts :

5(POS)

Contact Material :

COPPER ALLOY

Body Depth :

0.15 inch

Pbfree Code :

yes

MIL Conformance :

No

Mixed Contacts :

No

Termination Method :

Solder

Mounting Style :

Surface Mount

Product Height (mm) :

5.4(mm)

Shell Material :

LIQUID CRYSTAL POLYMER

Product Length (mm) :

11.55(mm)

Operating Temperature Min Deg. C :

-55C

Housing Material :

Liquid Cryst Polymer

Contact Plating :

Gold

Reach Compliance Code :

Compliant

Mounting Type :

BOARD

Contact Gender :

FEMALE

Durability :

500 Cycles

ECCN Code :

EAR99

Additional Feature :

RoHS Compliant

Product Depth (mm) :

4.15(mm)

Connector Type :

RECTANGULAR POWER CONNECTOR

Reliability :

COMMERCIAL

Subcategory :

Headers and Edge Type Connectors

Operating Temp Range :

-55C to 125C

Reference Standard :

UL

Packaging :

Tape and Reel

Board Mounting Option :

PEG

Mounting Option 1 :

LOCKING

HTS Code :

8536.69.40.30

Option :

GENERAL PURPOSE

Contact Arrangement :

S0P5

Number of Terminals :

5

Contact Finish Termination :

Tin (Sn)

IEC Conformance :

No

Gender :

F

Dielectric Withstanding Voltage :

1050VAC V

Body Breadth :

0.163 inch

Empty Shell :

No

Insulation Resistance :

10000000000 Ω

Operating Temperature Max Deg. C :

125C

UL Flammability Code :

94V-0

Body/Shell Style :

PLUG

Contact Style :

Hybrid

Contact Resistance :

4 mΩ

Pitch (mm) :

2(mm)

Filter Feature :

No

JESD-609 Code :

e3

DIN Conformance :

No

Termination Type :

Surface Mount

Current Rating (Max) :

6.6/CONTACT(A)

Body Orientation :

Straight

Total Number of Contacts :

5

Number of Ports :

1(Port)

Manufacturer :

ERNI
