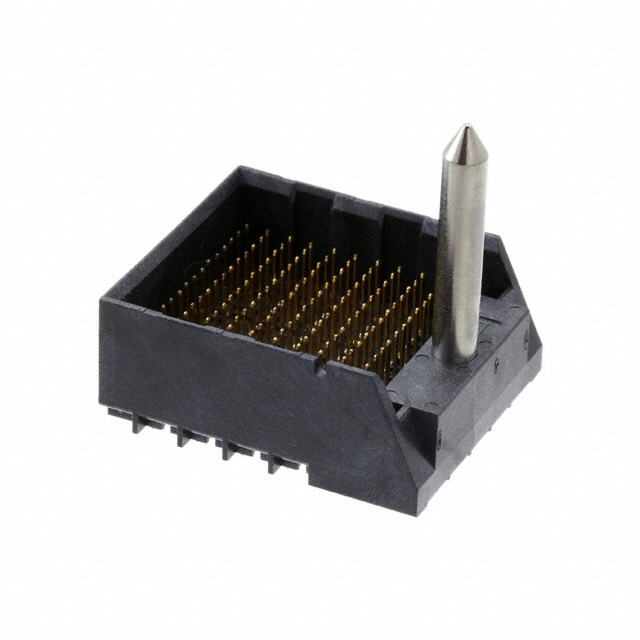

2143558-2
Or copy the link below:
- Mfr.Part #
- 2143558-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 150POS PCB
- Stock
- 68
- In Stock ：
- 68
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Sealable :
- No
- Shrouding :
- Fully Shrouded
- Number of Pairs :
- 50
- Number of Signal Positions :
- 100
- Hole Diameter :
- 381 µm
- ELV :
- Compliant
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- Width :
- 24.7904mm
- Connector Style :
- Impact, Guide Left
- Housing Material :
- Polymer
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Plating Thickness :
- 760 nm
- Number of Columns :
- 10
- Row Spacing :
- 1.15 mm
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- Non-RoHS Compliant
- Flammability Rating :
- UL94 V-0
- Stackable :
- No
- Current Rating :
- 750mA
- Termination :
- Press-Fit
- Contact Style :
- Press-Fit
- Number of Contacts :
- 150
- Underplate Material :
- Nickel
- Number of Positions Loaded :
- All
- Published :
- 2014
- Length - Tail :
- 1.4mm
- Color :
- Black
- Number of Ground Positions :
- 50
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- Contact Finish :
- Gold
- Mounting Type :
- Through Hole
- Number of Positions :
- 150
- Mating Alignment :
- With
- Data Rate :
- 25 Gbps
- Circuit Application :
- Signal
- Impedance :
- 100Ohm
- Number of Rows :
- 15
- Differential Signaling :
- yes
- Contact Current Rating :
- 750mA
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Factory Lead Time :
- 19 Weeks
- Min Operating Temperature :
- -67°C
- Max Operating Temperature :
- 185°C
- Operating Temperature :
- -55°C~ 85°C
- Contact Plating :
- Gold, Tin
- Max Current Rating :
- 750mA
- Height :
- 11.95mm
- Packaging :
- Tube
- Length :
- 28.4mm
- Differential Pairs per Column :
- 5
- Series :
- Impact
- PCB Thickness :
- 3mm
- Lead Free :
- Lead Free
- Make First / Break Last :
- No
- Pitch :
- 1.905mm
- Operating Supply Voltage :
- 30V
- Connector Type :
- Header, Male Pins
- Datasheets
- 2143558-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 150 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2143558-2 Overview
Packaging is in the form of Header, Male Pins.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Impact Series.If the temperature is below 185°C, it's best to use it.-67°C is the minimum temperature for this device.Devices operate at -55°C~ 85°C operating temperatures.A supply voltage of 30V is necessary for this Backplane Connector to work.
