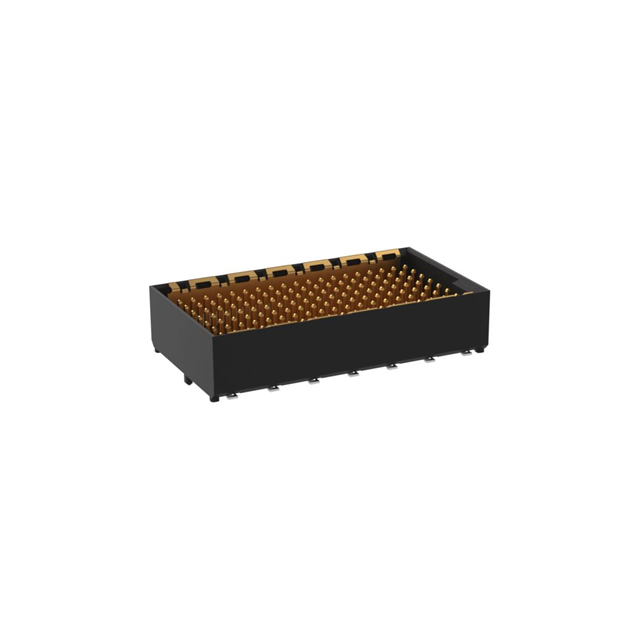

214355

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mounting Type :

BOARD

Insulation Resistance :

10000000000 Ω

Contact Finish Termination :

Tin (Sn)

Dielectric Withstanding Voltage :

700VAC V

Total Number of Contacts :

133

DIN Conformance :

No

Body Breadth :

0.459 inch

Mating Contact Pitch :

0.039 inch

IEC Conformance :

No

Body Depth :

0.189 inch

Product Depth (mm) :

11.65(mm)

Packaging :

Tape and Reel

Manufacturer :

ERNI

Body Orientation :

Straight

PCB Contact Row Spacing :

1.2446 mm

Rated Current (Signal) :

0.9 A

Pitch (mm) :

1(mm)

Mounting Option 1 :

LOCKING

Contact Style :

SQ PIN-SKT

Filter Feature :

No

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Body/Shell Style :

Receptacle

JESD-609 Code :

e3

PCB Contact Pattern :

RECTANGULAR

Mating Contact Row Spacing :

0.049 inch

ECCN Code :

EAR99

Termination Type :

Surface Mount

Number of Contacts :

133(POS)

Terminal Pitch :

1 mm

Mounting Style :

Surface Mount

Contact Resistance :

25 mΩ

Contact Material :

NOT SPECIFIED

Subcategory :

Headers and Edge Type Connectors

Product Height (mm) :

6.5(mm)

Reference Standard :

UL, CSA

Type :

Wire to Board

Reach Compliance Code :

Compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number Of PCB Rows :

7

Durability :

500 Cycles

Board Mounting Option :

PEG

Termination Method :

Solder

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Additional Feature :

RoHS Compliant

Product Length (mm) :

20.95(mm)

Plating Thickness :

4u inch

Number of Contact Rows :

7

MIL Conformance :

No

Contact Gender :

Male

Connector Type :

BOARD CONNECTOR

Gender :

M
