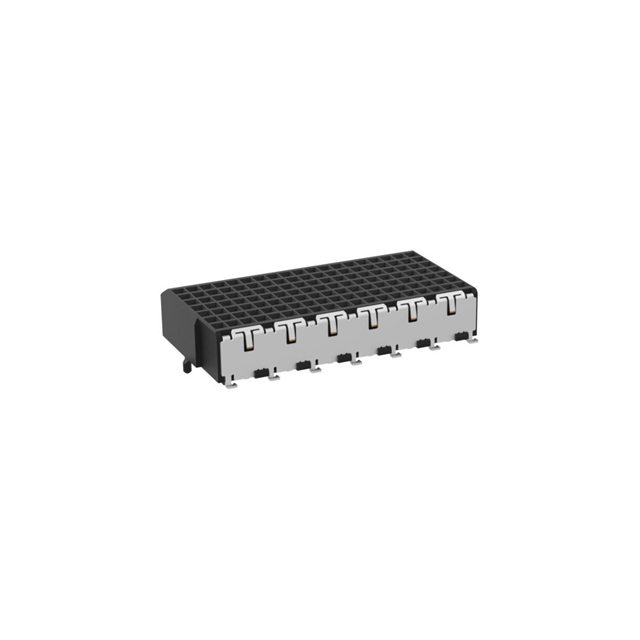

214352

Manufacturer :

TE Connectivity

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Gender :

FEMALE

JESD-609 Code :

e3

Filter Feature :

No

Body/Shell Style :

PLUG

Insulation Resistance :

10000000000 Ω

PCB Contact Pattern :

RECTANGULAR

Termination Type :

Surface Mount

IEC Conformance :

No

Contact Resistance :

25 mΩ

DIN Conformance :

No

Mounting Option 1 :

LOCKING

Number Of PCB Rows :

7

Polarization Key :

POLARIZED HOUSING

Mating Contact Pitch :

0.039 inch

Body Breadth :

0.4 inch

Subcategory :

Headers and Edge Type Connectors

Mounting Style :

Straight

Mixed Contacts :

No

Connector Type :

BOARD CONNECTOR

Manufacturer :

ERNI

Total Number of Contacts :

133

Rated Current (Signal) :

0.9 A

Additional Feature :

RoHS Compliant

Mounting Type :

BOARD

Reliability :

COMMERCIAL

Body Depth :

0.15 inch

Contact Material :

NOT SPECIFIED

Contact Finish Termination :

Tin (Sn)

Terminal Pitch :

1 mm

Contact Pattern :

RECTANGULAR

Dielectric Withstanding Voltage :

700VAC V

Mating Contact Row Spacing :

0.049 inch

Option :

GENERAL PURPOSE

Reach Compliance Code :

Compliant

Contact Style :

SQ PIN-SKT

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Reference Standard :

UL, CSA

Board Mounting Option :

PEG

Durability :

500 Cycles

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

MIL Conformance :

No

PCB Contact Row Spacing :

1.2446 mm

Plating Thickness :

4u inch
