2143270-1
Or copy the link below:
- Mfr.Part #
- 2143270-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 216POS PCB
- Stock
- 49,933
- In Stock ：
- 49,933
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Underplate Material :
- Nickel
- Factory Lead Time :
- 19 Weeks
- Contact Current Rating :
- 750mA
- Published :
- 2014
- Length - Tail :
- 1.4mm
- Color :
- Black
- ELV :
- Compliant
- Circuit Application :
- Signal
- Housing Color :
- Black
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 0.75A
- Differential Pairs per Column :
- 6
- Connector Style :
- Impact
- Connector Type :
- Header, Male Pins
- Max Operating Temperature :
- 185°C
- Operating Supply Voltage :
- 30V
- Gender :
- Male
- Mating Alignment :
- With
- Number of Columns :
- 12
- Max Current Rating :
- 750mA
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Max Voltage Rating (AC) :
- 120V
- Stackable :
- No
- Depth :
- 28.9mm
- Contact Finish :
- Gold
- Number of Ground Positions :
- 72
- Shrouding :
- Partially Shrouded
- Length :
- 25.6mm
- Data Rate :
- 25 Gbps
- Number of Pairs :
- 72
- Width :
- 28.9mm
- Hole Diameter :
- 381 µm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing :
- 1.15 mm
- Number of Signal Positions :
- 144
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tube
- Orientation :
- Vertical
- Number of Rows :
- 18
- Housing Material :
- Polymer
- PCB Thickness :
- 3mm
- Mount :
- Through Hole
- Impedance :
- 100Ohm
- Plating Thickness :
- 760 nm
- Pitch :
- 1.905mm
- Current Rating :
- 750mA
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Termination :
- Press-Fit
- Sealable :
- No
- PCB Mounting Orientation :
- Vertical
- Voltage - Rated :
- 30V
- Min Operating Temperature :
- -67°C
- Series :
- Impact
- Differential Signaling :
- yes
- Height :
- 11.95mm
- Make First / Break Last :
- No
- Material Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 216
- Operating Temperature :
- -55°C~ 85°C
- Contact Style :
- Press-Fit
- Number of Positions :
- 216
- Number of Positions Loaded :
- All
- Contact Plating :
- Gold, Tin
- Datasheets
- 2143270-1

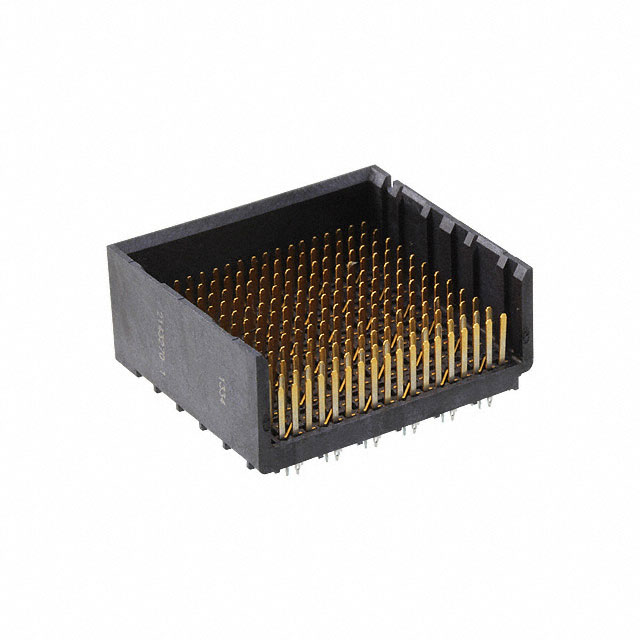

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 216 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2143270-1 Overview
The product is packaged in Header, Male Pins.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the Impact Series.When the temperature is below 185°C, it is best to use it.A minimum operating temperature of -67°C is required for this device.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~ 85°C Operating Temperature.A supply voltage of 30V is required to operate this Backplane Connector.
