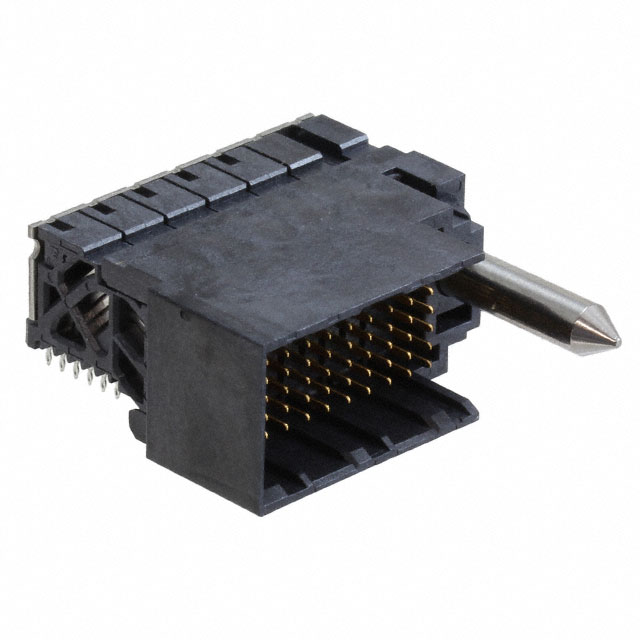

2143019-3
Or copy the link below:
- Mfr.Part #
- 2143019-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 395
- In Stock ：
- 395
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Hole Diameter :
- 381 µm
- Number of Signal Positions :
- 40
- Mating Alignment :
- With
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Current Rating (Amps) :
- 0.75A
- Sealable :
- No
- Length - Tail :
- 1.2mm
- Connector Type :
- Header, Male Pins
- PCB Thickness :
- 1.6mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Length :
- 26.90114mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 6
- Operating Supply Voltage :
- 30V
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Factory Lead Time :
- 19 Weeks
- Number of Pairs :
- 20
- Circuit Application :
- Signal
- Differential Signaling :
- yes
- Orientation :
- Vertical
- Data Rate :
- 25 Gbps
- Differential Pairs per Column :
- 2
- Number of Ground Positions :
- 20
- Plating Thickness :
- 1.52μm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Housing Material :
- Polymer
- Number of Columns :
- 10
- Color :
- Black
- Pitch :
- 1.905mm
- Published :
- 2011
- Flammability Rating :
- UL94 V-0
- Connector Style :
- Impact, Guide Right
- Contact Finish :
- Gold
- Contact Material :
- Copper, Nickel
- Height :
- 12.446mm
- Housing Color :
- Black
- Operating Temperature :
- -55°C~ 85°C
- Max Operating Temperature :
- 185°C
- Width :
- 24.384mm
- PCB Mounting Orientation :
- Vertical
- Series :
- Impact
- Contact Plating :
- Gold, Tin
- Min Operating Temperature :
- -67°C
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 60
- Underplate Material :
- Nickel
- Current Rating :
- 750mA
- Voltage - Rated :
- 30V
- Impedance :
- 100Ohm
- Contact Style :
- Press-Fit
- Make First / Break Last :
- No
- Shrouding :
- Fully Shrouded
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 750mA
- Number of Contacts :
- 60
- Row Spacing :
- 1.35 mm
- Packaging :
- Tube
- Termination :
- Press-Fit
- Max Current Rating :
- 750mA
- Stackable :
- No
- Datasheets
- 2143019-3
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143019-3 Overview
Currently, it is packaged in Header, Male Pins.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tube case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.A temperature below 185°C is best for using it.The device must run at -67°C degrees.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.If you supply the connector with a voltage of 30V, it will work.
2143019-3 Features
Impact series
2143019-3 Applications
There are a lot of TE Connectivity AMP Connectors
2143019-3 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
