2143017-2
Or copy the link below:
- Mfr.Part #
- 2143017-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 20,248
- In Stock ：
- 20,248
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Housing Color :
- Black
- Series :
- Impact
- Termination :
- Press-Fit
- Number of Columns :
- 10
- Width :
- 24.384mm
- Hole Diameter :
- 381 µm
- Color :
- Black
- PCB Thickness :
- 1.6mm
- Shrouding :
- Fully Shrouded
- PCB Mounting Orientation :
- RIGHT ANGLE
- Circuit Application :
- Signal
- Make First / Break Last :
- No
- Max Current Rating :
- 750mA
- Contact Current Rating :
- 750mA
- Number of Rows :
- 6
- Contact Finish :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Material Flammability Rating :
- UL94 V-0
- Length :
- 26.90114mm
- Row Spacing :
- 1.35 mm
- Number of Pairs :
- 20
- Stackable :
- No
- Height :
- 12.446mm
- Differential Pairs per Column :
- 2
- Packaging :
- Tube
- Flammability Rating :
- UL94 V-0
- Contact Style :
- Press-Fit
- Number of Positions :
- 60
- Connector Type :
- Header, Male Pins
- Plating Thickness :
- 1.52μm
- Differential Signaling :
- yes
- Mating Alignment :
- With
- Underplate Material :
- Nickel
- Number of Ground Positions :
- 20
- Length - Tail :
- 1.2mm
- Orientation :
- RIGHT ANGLE
- Voltage - Rated :
- 30V
- Factory Lead Time :
- 15 Weeks
- Current Rating :
- 750mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 1.905mm
- Current Rating (Amps) :
- 0.75A
- Number of Signal Positions :
- 40
- Impedance :
- 100Ohm
- Number of Contacts :
- 60
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~ 85°C
- Max Operating Temperature :
- 185°C
- Contact Plating :
- Gold, Tin
- Published :
- 2011
- Number of Positions Loaded :
- All
- Operating Supply Voltage :
- 30V
- Sealable :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Data Rate :
- 25 Gbps
- Housing Material :
- Polymer
- Min Operating Temperature :
- -67°C
- Connector Style :
- Impact, Guide Left
- Contact Material :
- Copper, Nickel
- ELV :
- Compliant
- Datasheets
- 2143017-2

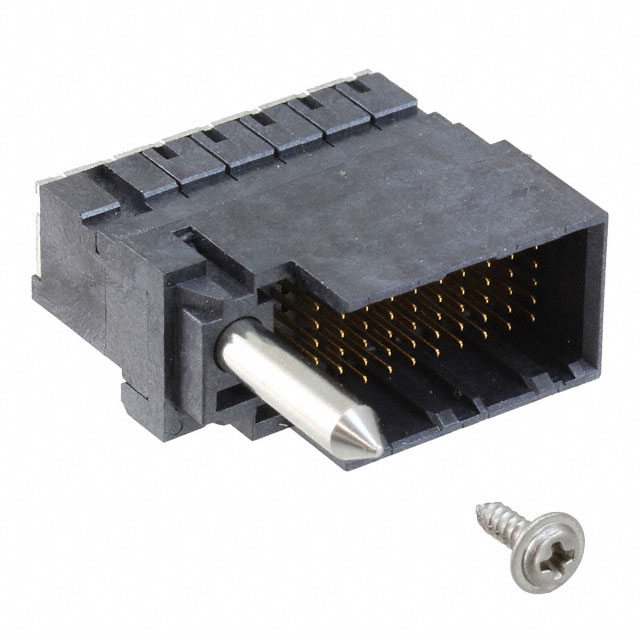

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143017-2 Overview
The product comes in a package of Header, Male Pins.Board Edge, Through Hole, Right Angle is the mount type.Tube cases are used to package the product.This product is in the Impact Series.When the temperature falls below 185°C, it is best to use it.Minimum temperature is -67°C.Operating temperature is -55°C~ 85°C.There's no problem with this Backplane Connector with a supply voltage of 30V.
2143017-2 Features
Impact series
2143017-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143017-2 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
