2143014-2
Or copy the link below:
- Mfr.Part #
- 2143014-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR IMPACT 60POS EDGE MNT
- Stock
- 19,811
- In Stock ：
- 19,811
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Plating :
- Gold, Tin
- Differential Pairs per Column :
- 2
- Operating Supply Voltage :
- 30V
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polymer
- Voltage - Rated :
- 30V
- Sealable :
- No
- Length :
- 21.6916mm
- Housing Color :
- Black
- Number of Contacts :
- 60
- Current Rating :
- 750mA
- Shrouding :
- Fully Shrouded
- ELV :
- Compliant
- Packaging :
- Tube
- Max Operating Temperature :
- 185°C
- Max Current Rating :
- 750mA
- Contact Current Rating :
- 750mA
- Current Rating (Amps) :
- 0.75A
- Data Rate :
- 25 Gbps
- Min Operating Temperature :
- -67°C
- Number of Rows :
- 6
- Connector Style :
- Impact
- Differential Signaling :
- yes
- Connector Type :
- Header, Male Pins
- Width :
- 24.384mm
- Pitch :
- 1.905mm
- Contact Finish :
- Gold
- Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Row Spacing :
- 1.35 mm
- Length - Tail :
- 1.2mm
- Contact Style :
- Press-Fit
- Stackable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 12.446mm
- Termination :
- Press-Fit
- Contact Material :
- Copper, Nickel
- Plating Thickness :
- 1.52μm
- Hole Diameter :
- 381 µm
- Factory Lead Time :
- 17 Weeks
- Impedance :
- 100Ohm
- Mating Alignment :
- With
- Underplate Material :
- Nickel
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Color :
- Black
- Number of Positions Loaded :
- All
- Number of Columns :
- 10
- Number of Positions :
- 60
- PCB Mounting Orientation :
- RIGHT ANGLE
- Make First / Break Last :
- No
- Number of Signal Positions :
- 40
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~ 85°C
- Series :
- Impact
- RoHS Status :
- RoHS Compliant
- Number of Pairs :
- 20
- PCB Thickness :
- 1.6mm
- Circuit Application :
- Signal
- Published :
- 2011
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Ground Positions :
- 20
- Datasheets

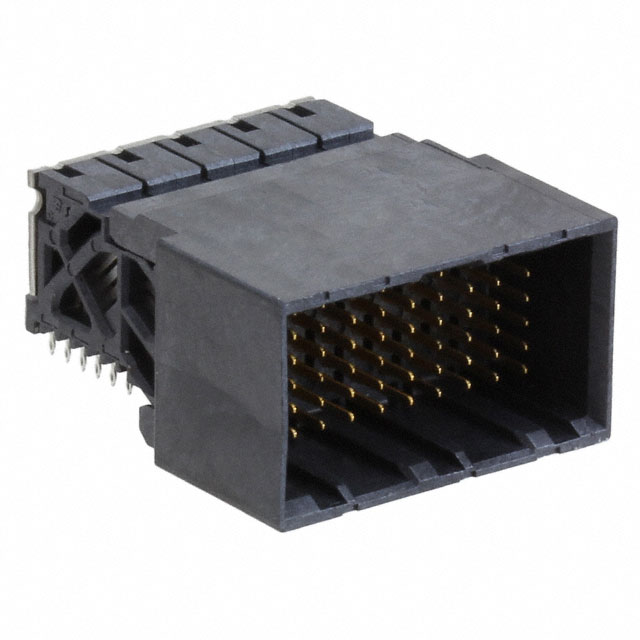

- 2143014-2
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2143014-2 Overview
The packaging contains Header, Male Pins.There is a Board Edge, Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tube.Product number Impact belongs to the Impact Series.Whenever the temperature is below 185°C, it's best.There is a minimum temperature requirement of [0°C] for this device.This device operates at a temperature of -55°C~ 85°C.When the supply voltage is set to 30V, this Backplane Connector will work.
2143014-2 Features
Impact series
2143014-2 Applications
There are a lot of TE Connectivity AMP Connectors
2143014-2 Backplane Connectors applications.
