Mfr.Part #
2143012-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HDR IMPACT 60POS EDGE MNT
Stock
41,725
In Stock :
41,725

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Specialized
Number of Rows :
6
Voltage - Rated :
30V
Current Rating :
750mA
Data Rate :
25 Gbps
Number of Ground Positions :
20
Housing Color :
Black
Number of Contacts :
60
Published :
2011
Length :
18.796mm
Connector Style :
Impact
ELV :
Compliant
Connector Type :
Header, Male Pins
Contact Finish :
Gold
Max Operating Temperature :
185°C
Contact Finish Thickness :
30.0μin 0.76μm
Max Current Rating :
750mA
Min Operating Temperature :
-67°C
Pitch :
1.905mm
Operating Supply Voltage :
30V
Max Voltage Rating (AC) :
120V
Current Rating (Amps) :
0.75A
Housing Material :
Polymer
Gender :
Male
Height :
12.446mm
Make First / Break Last :
No
Number of Pairs :
20
Series :
Impact
PCB Thickness :
1.6mm
Row Spacing :
1.35 mm
Mating Alignment :
With
Hole Diameter :
381 µm
Mounting Type :
Board Edge, Through Hole, Right Angle
PCB Mounting Orientation :
RIGHT ANGLE
Differential Signaling :
yes
Impedance :
100Ohm
Depth :
24.65mm
Packaging :
Tube
Contact Plating :
Gold, Tin
Contact Material :
Copper, Nickel
Width :
24.384mm
Underplate Material :
Nickel
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Plating Thickness :
1.52μm
Number of Columns :
10
Stackable :
No
Number of Signal Positions :
40
Length - Tail :
1.2mm
Termination :
Press-Fit
Number of Positions :
60
Circuit Application :
Signal
Shrouding :
Partially Shrouded
Mount :
Through Hole
Orientation :
RIGHT ANGLE
Number of Positions Loaded :
All
Contact Style :
Press-Fit
Color :
Black
Sealable :
No
RoHS Status :
RoHS Compliant
Flammability Rating :
UL94 V-0
Operating Temperature :
-55°C~ 85°C
Factory Lead Time :
14 Weeks
Differential Pairs per Column :
2
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Current Rating :
750mA
Material Flammability Rating :
UL94 V-0
Datasheets
2143012-2
Introducing Specialized TE Connectivity AMP Connectors 2143012-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Board Edge, Through Hole, Right Angle, Operating Temperature:-55°C~ 85°C, 2143012-2 pinout, 2143012-2 datasheet PDF, 2143012-2 amp .Beyond Specialized TE Connectivity AMP Connectors 2143012-2 ,we also offer 6469025-1, 1892787-6, 0761703038, Our vast inventory has you covered. Contact us now for immediate solutions.

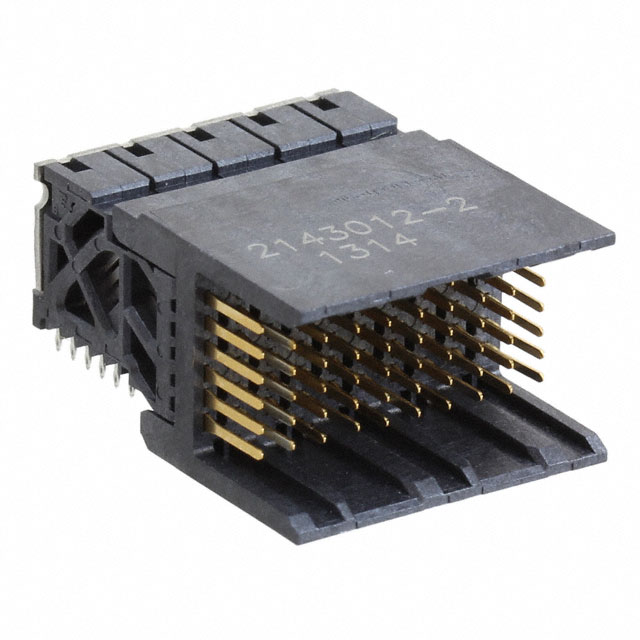

TE Connectivity AMP Connectors 2143012-2


Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 1.905mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle

2143012-2 Overview


A Header, Male Pins package is included with it.Its mounting type is Board Edge, Through Hole, Right Angle.Packaging is performed using a Tube case.It is part of the Impact Series of products.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -67°C at all times.Through Hole mounts the part.There is no operating temperature for the device.This Backplane Connector operates with a supply voltage of 30V.
