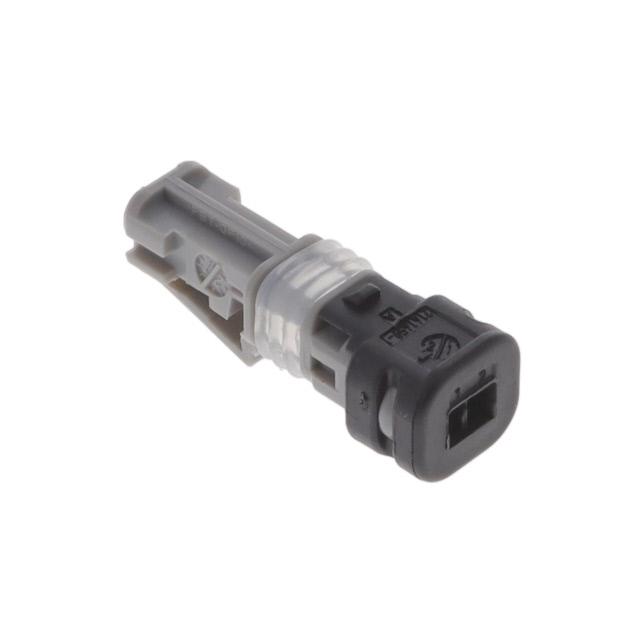

2141467-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Product Depth (mm) :

8.2(mm)

Hybrid Connector :

No

Ingress Protection :

IPX9K

Maximum Operating Temperature :

+ 130 C

Mounting Style :

Cable Mount / Free Hanging

Termination Style :

Crimp

Circuit Application :

Signal

Application :

Wire to Board/Device

Minimum Operating Temperature :

- 40 C

Width :

22.0472 mm

Packaging :

Box

Number of Rows :

1

Current Rating :

-

Brand :

TE Connectivity / AMP

Number of Contact Rows :

1

Product Length (mm) :

7.6(mm)

Body Orientation :

Straight

Housing Color :

Gray

Max Operating Temperature :

130 °C

ELV :

Compliant

Lifecycle Status :

Production (Last Updated: 3 days ago)

Mating Tab Width :

500 µm

Subcategory :

Automotive Connectors

Product Type :

Automotive Connectors

Pitch (mm) :

1.8(mm)

Flammability Rating :

UL94 HB

Voltage Rating :

-

Product Category :

Automotive Connectors

For Use With :

AMP Nano MQS Series Socket Contacts

Manufacturer :

TE Connectivity

Accessory Type :

-

Body Material :

PBT

Number of Contacts :

2(POS)

Mounting Angle :

Straight

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Serviceable :

No

Length :

7.6 mm

Number of Positions :

2

IP Rating :

IPX9K

Type :

Housing

RoHS :

Non-Compliant

Height :

8.2042 mm

Polarized :

yes

Contact Gender :

Without Socket Contacts

Color :

Grey

Gender :

RCP

Housing Material :

Polybutylene Terephthalate (PBT)

Operating Temp Range :

-40C to 130C

Product :

Housings

Product Height (mm) :

22.05(mm)

Min Operating Temperature :

-40 °C

Pitch :

1.8034 mm
