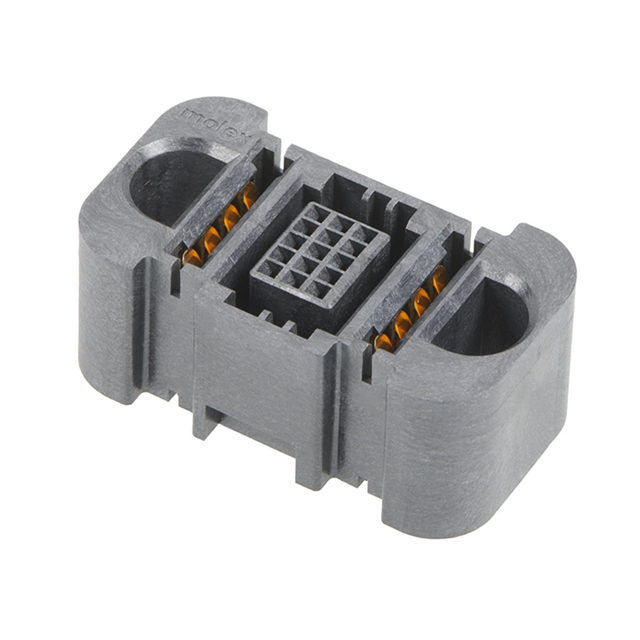

2141140002
Or copy the link below:
- Mfr.Part #
- 2141140002
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- GUARDIAN HD VERTICAL REC G-1P-15
- Stock
- 5,697
- In Stock ：
- 5,697
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Blade Type Power Connector Assemblies
- Termination :
- Solder
- Number of Rows :
- 5 Row
- Contact Material :
- COPPER ALLOY
- Maximum Operating Temperature :
- + 105 C
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Current Rating :
- 80 A
- Connector Style :
- -
- Voltage Rating :
- 125 V
- Gender :
- Receptacle
- Operating Temperature :
- -40°C ~ 105°C
- Product :
- Receptacles
- Insulation Resistance :
- 5000 MOhms
- Contact Gender :
- Socket (Female)
- Series :
- 214114
- Housing Color :
- Black
- Body Orientation :
- RIGHT ANGLE
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Color :
- Black
- Mounting Style :
- Through Hole
- Package :
- Tray
- Type :
- Power to the Board
- Contact Plating :
- Gold
- Contact Finish :
- Gold
- Fastening Type :
- Push-Pull
- Current Rating (Amps) :
- 80 A
- Mounting Type :
- PCB Mount
- Minimum Operating Temperature :
- - 40 C
- RoHS :
- Details
- Termination Method :
- Through Hole
- Pitch :
- 2 mm
- Number of Positions :
- 2 Power, 15 Signal
- Product Status :
- Active
- Base Product Number :
- 214114
- Tradename :
- EXTreme Guardian
- Packaging :
- Tray
- Termination Style :
- Solder Pin
- Connector Shell Size :
- -
- Features :
- Mating Guide
- Number of Contacts :
- 1P + 15S + 1P
- Material - Insulation :
- Liquid Crystal Polymer (LCP)
- Wire Gauge :
- -
- Connector Type :
- Receptacle, Female Blade Sockets
- Mounting Angle :
- Vertical
- Datasheets
- 2141140002
