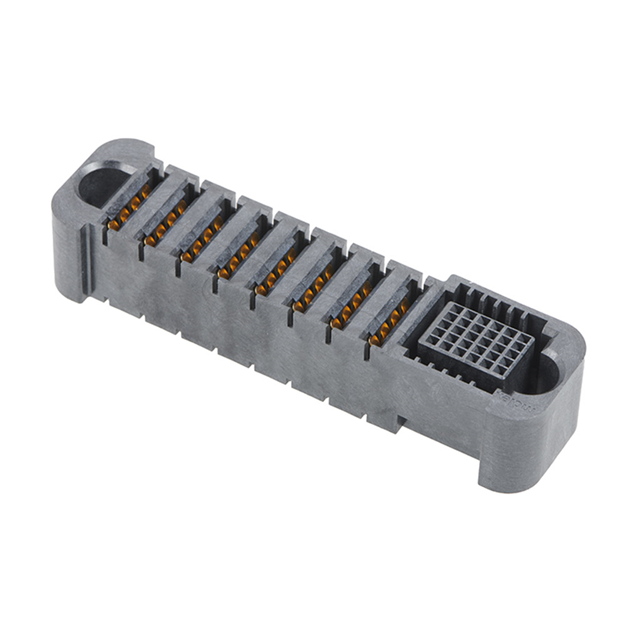

2141140001
Or copy the link below:
- Mfr.Part #
- 2141140001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- GUARDIAN HD VERTICAL REC G-8P-30
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Blade Type Power Connector Assemblies
- Contact Plating :
- Gold
- Color :
- Black
- Connector Shell Size :
- -
- Number of Contacts :
- 8P + 30S
- Package :
- Tray
- Minimum Operating Temperature :
- - 40 C
- Contact Material :
- COPPER ALLOY
- Product Status :
- Active
- Base Product Number :
- 214114
- Voltage Rating :
- 125 V
- RoHS :
- Details
- Gender :
- Receptacle
- Number of Positions :
- 8 Power, 30 Signal
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Maximum Operating Temperature :
- + 105 C
- Fastening Type :
- Push-Pull
- Tradename :
- EXTreme Guardian
- Insulation Resistance :
- 5000 MOhms
- Number of Rows :
- 5 Row
- Mounting Style :
- Through Hole
- Mounting Type :
- PCB Mount
- Mounting Angle :
- Vertical
- Contact Finish :
- Gold
- Product :
- Receptacles
- Termination Method :
- Through Hole
- Pitch :
- 5.78 mm, 2 mm
- Body Orientation :
- Vertical
- Operating Temperature :
- -40°C ~ 105°C
- Contact Gender :
- Socket (Female)
- Connector Style :
- -
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Current Rating (Amps) :
- 80 A
- Series :
- 214114
- Material - Insulation :
- Liquid Crystal Polymer (LCP)
- Wire Gauge :
- -
- Termination :
- Solder
- Packaging :
- Tray
- Current Rating :
- 80 A
- Features :
- Mating Guide
- Type :
- Power to the Board
- Housing Color :
- Black
- Connector Type :
- Receptacle, Female Blade Sockets
- Termination Style :
- Solder Pin
- Datasheets
- 2141140001
