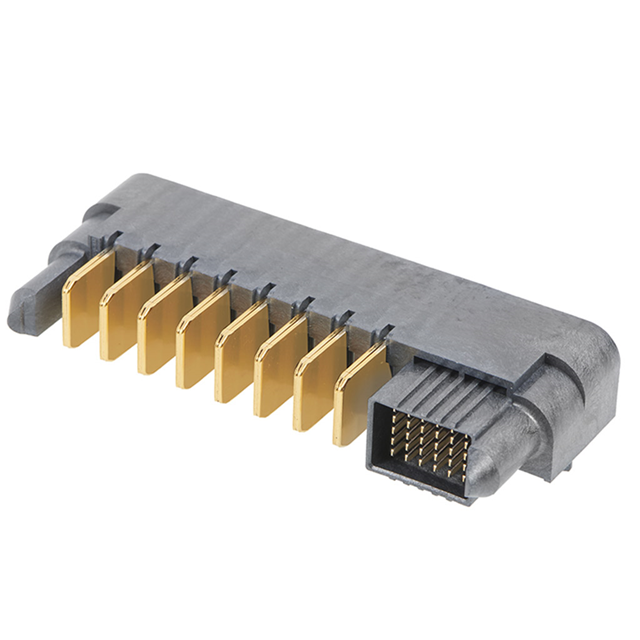

2141130010
Or copy the link below:
- Mfr.Part #
- 2141130010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- GUARDIAN HD RA PLUG G+8P+30S+G P
- Stock
- 39
- In Stock ：
- 39
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Blade Type Power Connector Assemblies
- Body Orientation :
- RIGHT ANGLE
- Contact Finish :
- Gold
- Wire Gauge :
- -
- Product Status :
- Active
- Material - Insulation :
- Liquid Crystal Polymer (LCP)
- Current Rating (Amps) :
- 80 A
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Fastening Type :
- Push-Pull
- Operating Temperature :
- -40°C ~ 105°C
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Package :
- Tray
- Connector Style :
- -
- Mounting Style :
- Through Hole
- Maximum Operating Temperature :
- + 105 C
- Number of Contacts :
- 8P + 30S
- Series :
- 214113
- Housing Color :
- Black
- Number of Positions :
- 8 Power, 30 Signal
- Base Product Number :
- 214113
- Gender :
- Header
- Features :
- Board Guide, Mating Guide
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Through Hole, Right Angle
- Minimum Operating Temperature :
- - 40 C
- Tradename :
- EXTreme Guardian
- Voltage Rating :
- 125 V
- Mounting Angle :
- RIGHT ANGLE
- Termination Style :
- Solder Pin
- Pitch :
- 5.78 mm, 2 mm
- Termination :
- Solder
- Current Rating :
- 80 A
- Connector Type :
- Plug, Male Blades
- Number of Rows :
- 5 Row
- RoHS :
- Details
- Color :
- Black
- Insulation Resistance :
- 5000 MOhms
- Contact Gender :
- Pin (Male)
- Packaging :
- Tray
- Product :
- Headers
- Contact Plating :
- Gold
- Connector Shell Size :
- -
- Datasheets
- 2141130010
