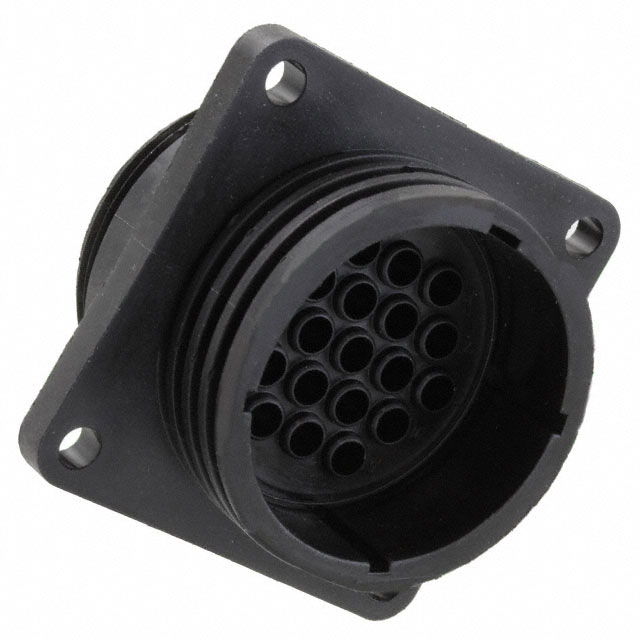

213870-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Housings

ECCN Code :

EAR99

Number of Ports :

1

Lead Free :

Lead Free

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Mating Retention :

With

Housing Material :

Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Series :

CPC Series 1

Housing Color :

Black

Operating Temperature :

-55°C~105°C

Contact Type :

Crimp

Shielding :

Unshielded

Shell Size - Insert :

23-19

Note :

Contacts Not Included

IEC Conformance :

No

Length :

34.29mm

Mounting Type :

Panel Mount

Contact Size :

16

Insert Material :

Thermoplastic

Material Flammability Rating :

UL94 V-0

Fastening Type :

Threaded

Connector Type :

Receptacle Housing

MIL Conformance :

No

Published :

1997

Sealable :

No

Number of Positions :

19

Type :

For Male Pins

RoHS Status :

RoHS Compliant

Contact Shape :

Circular

ELV :

Compliant

DIN Conformance :

No

Shell Material :

Polyamide (PA), Nylon

Insulation Diameter :

3.81 mm

Max Voltage Rating (AC) :

250V

Packaging :

Bulk

Filter Feature :

No

Mounting Feature :

Flange

Option :

GENERAL PURPOSE

Mount :

Panel

Depth :

44.45mm

Operating Supply Voltage :

600V

Empty Shell :

yes

Total Number of Contacts :

19

Number of Power Positions :

0

Orientation :

B

VDE Tested :

yes

Factory Lead Time :

10 Weeks

Pbfree Code :

yes
