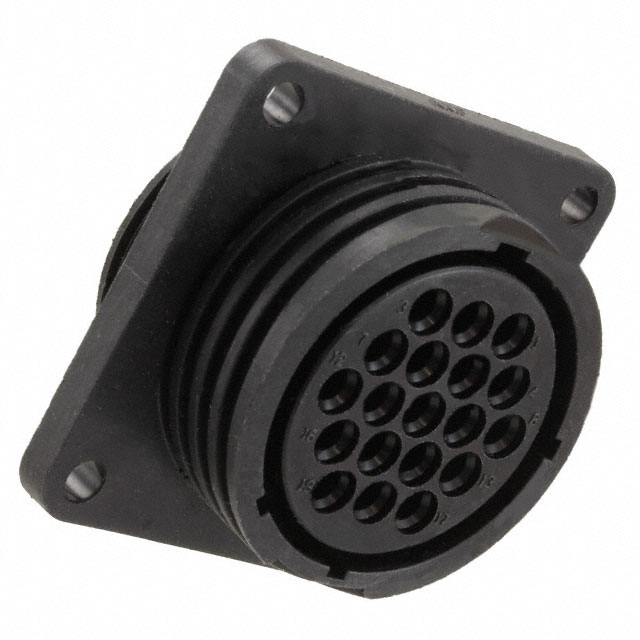

213868-1
Or copy the link below:
- Mfr.Part #
- 213868-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG FMALE 19POS PNL MT
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Option :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- Length :
- 27.18mm
- Series :
- CPC Series 1
- ELV :
- Compliant
- Shell Material :
- Polyamide (PA), Nylon
- Mount :
- Panel
- Number of Ports :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shielding :
- Unshielded
- Max Voltage Rating (AC) :
- 250V
- Note :
- Contacts Not Included
- Housing Color :
- Black
- Housing Material :
- Nylon
- Mounting Feature :
- Flange
- Insert Material :
- Thermoplastic
- Contact Size :
- 16
- Shell Size - Insert :
- 23-19
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- IEC Conformance :
- No
- Operating Temperature :
- -55°C~105°C
- Insulation Diameter :
- 3.81 mm
- Mounting Type :
- Panel Mount
- Total Number of Contacts :
- 19
- Published :
- 1997
- Depth :
- 44.45mm
- Operating Supply Voltage :
- 600V
- Contact Type :
- Crimp
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- Fastening Type :
- Threaded
- Orientation :
- B
- Connector Type :
- Receptacle Housing
- Number of Positions :
- 19
- Flammability Rating :
- UL94 V-0
- Mating Retention :
- With
- Sealable :
- No
- Number of Power Positions :
- 0
- Filter Feature :
- No
- Factory Lead Time :
- 4 Weeks
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Circular
- VDE Tested :
- yes
- Type :
- For Female Sockets
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Empty Shell :
- yes
- Datasheets
- 213868-1
Receptacle Housing Polyamide (PA), Nylon Panel Mount 19 Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 1
213868-1 Overview
The product is packaged in Receptacle Housing.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.There is a product in the CPC Series 1 Series.Many of the benefits of this part can be attributed to other products from the [0] family.For mounting this component, a Panel socket is required.The device has 1 ports that can be used to manage a variety of tasks.
213868-1 Features
CPC Series 1 series
213868-1 Applications
There are a lot of TE Connectivity AMP Connectors
213868-1 Circular Connectors applications.
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
