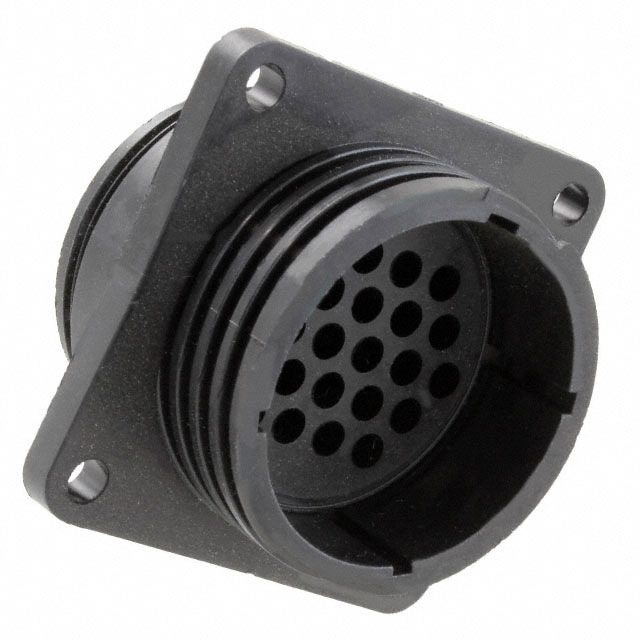

213866-1
Or copy the link below:
- Mfr.Part #
- 213866-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 24POS PNL MT
- Stock
- 388
- In Stock ：
- 388
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Housings
- Mating Retention :
- With
- Insert Material :
- Thermoplastic
- Series :
- CPC Series 1
- Sealable :
- No
- Insulation Diameter :
- 3.81 mm
- Type :
- For Male Pins
- Note :
- Contacts Not Included
- Number of Ports :
- 1
- IEC Conformance :
- No
- Empty Shell :
- yes
- Shielding :
- Unshielded
- Number of Positions :
- 24
- Length :
- 34.29mm
- Depth :
- 44.45mm
- Total Number of Contacts :
- 24
- Mount :
- Panel
- DIN Conformance :
- No
- Operating Supply Voltage :
- 600V
- Factory Lead Time :
- 10 Weeks
- Option :
- GENERAL PURPOSE
- Lead Free :
- Lead Free
- RoHS Status :
- RoHS Compliant
- MIL Conformance :
- No
- Filter Feature :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Size :
- 16
- Number of Power Positions :
- 0
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Panel Mount
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Contact Shape :
- Circular
- Contact Type :
- Crimp
- ECCN Code :
- EAR99
- Published :
- 2004
- Max Voltage Rating (AC) :
- 250V
- Shell Size - Insert :
- 23-24
- Fastening Type :
- Threaded
- Housing Material :
- Nylon
- Housing Color :
- Black
- Connector Type :
- Receptacle Housing
- Packaging :
- Bulk
- ELV :
- Compliant
- Mounting Feature :
- Flange
- Shell Material :
- Polyamide (PA), Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -55°C~105°C
- Orientation :
- B
- Datasheets
- 213866-1
Receptacle Housing Polyamide (PA), Nylon Panel Mount 24 Positions Bulk Threaded Unshielded Contacts Not Included CPC Series 1
213866-1 Overview
A Receptacle Housing package is included with it.Its mounting type is Panel Mount.Packaging is performed using a Bulk case.It is part of the CPC Series 1 Series of products.Other [0] products share many of the same benefits as this part.If you wish to mount this part, you will need to use a Panel socket.The device is equipped with 1 ports for the management of a variety of tasks.
213866-1 Features
CPC Series 1 series
213866-1 Applications
There are a lot of TE Connectivity AMP Connectors
213866-1 Circular Connectors applications.
