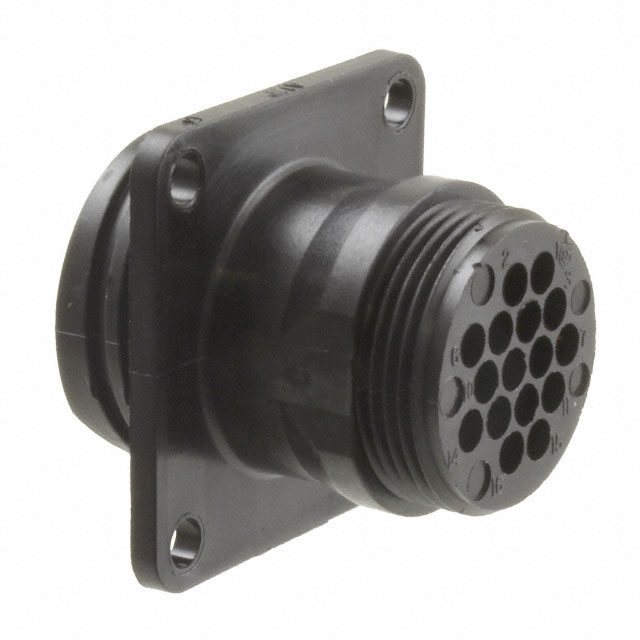

213862-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Housings

Mount :

Panel

Number of Ports :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

ELV :

Compliant

Insert Material :

Thermoplastic

Shielding :

Unshielded

Fastening Type :

Threaded

Shell Size - Insert :

17-16

ECCN Code :

EAR99

REACH SVHC :

Unknown

Material Flammability Rating :

UL94 V-0

Operating Supply Voltage :

600V

Orientation :

B

Factory Lead Time :

10 Weeks

Depth :

36.45mm

Housing Material :

Nylon

Length :

34.29mm

IEC Conformance :

No

RoHS Status :

RoHS Compliant

Mounting Type :

Panel Mount

Filter Feature :

No

Number of Positions :

16

Insulation Diameter :

2.54 mm

Mixed Contacts :

yes

Published :

1997

Mating Retention :

With

Body Material :

Glass, Thermoplastic

Empty Shell :

yes

MIL Conformance :

No

Mounting Feature :

Flange

Contact Type :

Crimp

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Packaging :

Bulk

Pbfree Code :

yes

Series :

CPC Series 1

Number of Power Positions :

0

Note :

Contacts Not Included

Sealable :

No

Option :

GENERAL PURPOSE

Shell Material :

Polyamide (PA), Nylon

Contact Shape :

Circular

DIN Conformance :

No

Connector Type :

Receptacle Housing

Housing Color :

Black

Total Number of Contacts :

16

Type :

For Male Pins

Operating Temperature :

-55°C~105°C

Max Voltage Rating (AC) :

250V
