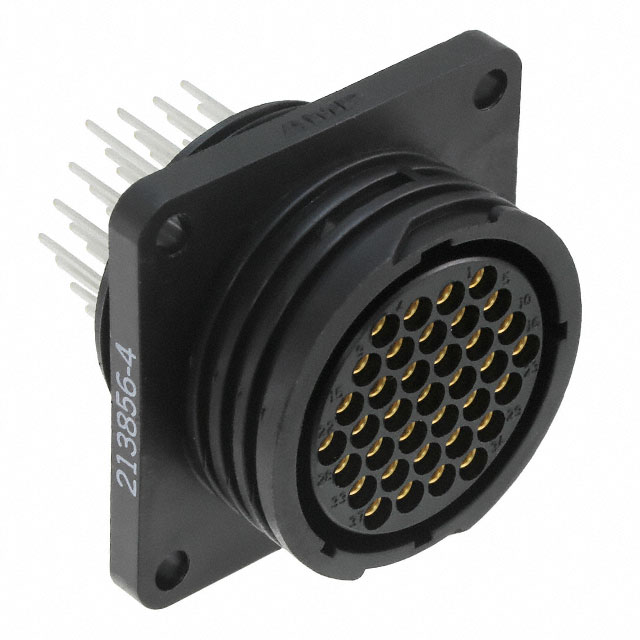

213856-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Assemblies

ECCN Code :

EAR99

Connector Type :

Receptacle, Female Sockets

Pitch :

14.15mm

Number of Positions :

37

Contact Finish - Mating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Power Positions :

0

Sealable :

No

Contact Material :

Brass

Backshell Type :

Solid

MIL Conformance :

No

Lead Length :

14.15mm

Total Number of Contacts :

37

Material Flammability Rating :

UL94 V-0

Plating Thickness :

762 nm

Orientation :

B

Factory Lead Time :

8 Weeks

Mount :

Panel

Shell Material :

Polyamide (PA), Nylon

Termination :

Solder

ELV :

Compliant

Housing Color :

Black

Voltage - Rated :

250VAC/DC

Length :

36.45mm

Mounting Feature :

Flange

Current Rating :

13A

DIN Conformance :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Operating Supply Voltage :

250V

Series :

CPC Series 1

Mixed Contacts :

No

Mounting Type :

Panel Mount, Through Hole

Published :

2007

Shell Size - Insert :

23-37

IEC Conformance :

No

Insulation Diameter :

2.54 mm

Operating Temperature :

-55°C~105°C

Flammability Rating :

UL94 V-0

Packaging :

Tray

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

RoHS Status :

RoHS Compliant

Fastening Type :

Threaded

Lead Free :

Lead Free

Number of Ports :

1

Filter Feature :

No

Max Voltage Rating (AC) :

250V

Option :

GENERAL PURPOSE

Pbfree Code :

yes

JESD-609 Code :

e3

Depth :

36.45mm

Housing Material :

Thermoplastic

Mating Alignment :

With

Empty Shell :

No
