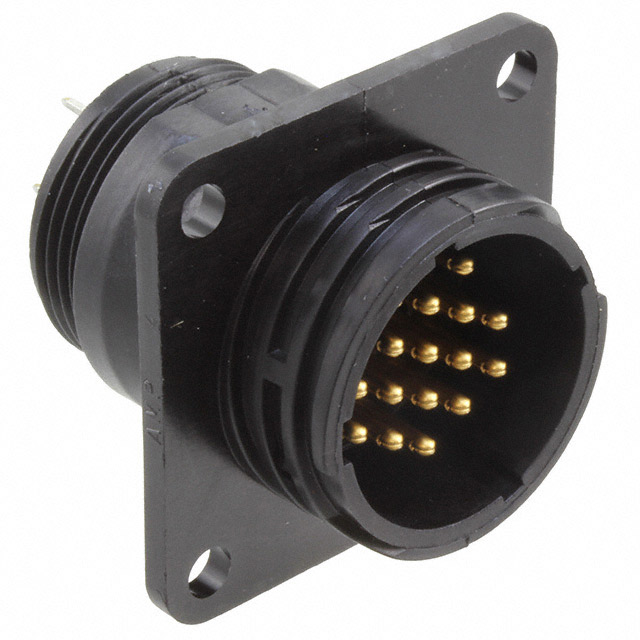

213855-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Assemblies

Connector Type :

Receptacle, Male Pins

Depth :

36.45mm

Mounting Feature :

Flange

Filter Feature :

No

Insulation Diameter :

2.54 mm

Mount :

Panel

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Empty Shell :

No

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Pbfree Code :

yes

Sealable :

No

Packaging :

Tray

Fastening Type :

Threaded

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Voltage - Rated :

250VAC/DC

Housing Color :

Black

DIN Conformance :

No

Mounting Type :

Panel Mount, Through Hole

Gender :

Receptacle

IEC Conformance :

No

Backshell Type :

Solid

Reference Standard :

UL

Number of Positions :

16

Factory Lead Time :

8 Weeks

Current Rating :

13A

Operating Temperature :

-55°C~105°C

Shell Material :

Polyamide (PA), Nylon

Number of Power Positions :

0

Published :

2007

Contact Material :

Brass

Contact Finish - Mating :

Gold

Orientation :

B

Mating Alignment :

With

Series :

CPC Series 1

RoHS Status :

RoHS Compliant

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Operating Supply Voltage :

250V

Termination :

Solder

Shell Size - Insert :

17-16

Length :

36.45mm

Housing Material :

Nylon

Total Number of Contacts :

16

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Number of Ports :

1

Plating Thickness :

762 nm

ELV :

Compliant
