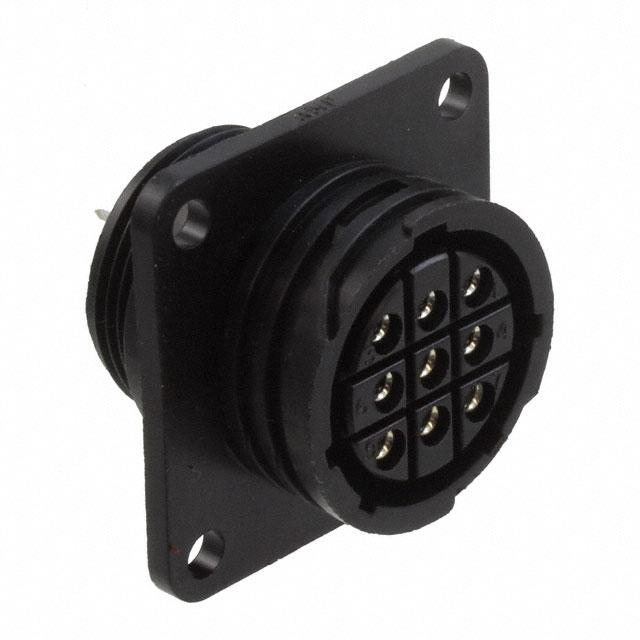

213826-1
Or copy the link below:
- Mfr.Part #
- 213826-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 9P TIN-LEAD SLDR
- Stock
- 191
- In Stock ：
- 191
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Backshell Type :
- Solid
- Packaging :
- Tray
- Flammability Rating :
- UL94 V-0
- Mounting Feature :
- Flange
- Lead Free :
- Contains Lead
- Factory Lead Time :
- 13 Weeks
- Contact Finish - Mating :
- Tin-Lead
- Connector Type :
- Receptacle, Female Sockets
- Shell Size - Insert :
- 17-9
- ELV :
- Non-Compliant
- VDE Tested :
- No
- Total Number of Contacts :
- 9
- Mount :
- Panel
- Lead Length :
- 5.59mm
- RoHS Status :
- Non-RoHS Compliant
- Empty Shell :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Shell Material :
- Polyamide (PA), Nylon
- Operating Supply Voltage :
- 250V
- IEC Conformance :
- No
- MIL Conformance :
- No
- Published :
- 2005
- Number of Positions :
- 9
- Fastening Type :
- Threaded
- Sealable :
- yes
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Voltage - Rated :
- 250VAC/DC
- Depth :
- 36.44mm
- Number of Power Positions :
- 0
- Termination :
- Solder
- Pbfree Code :
- No
- Length :
- 36.44mm
- Color :
- Black
- Orientation :
- A
- Series :
- CPC Series 1
- DIN Conformance :
- No
- Contact Plating :
- Tin
- Housing Material :
- Nylon
- Operating Temperature :
- -55°C~105°C
- Mounting Type :
- Panel Mount, Through Hole
- Current Rating :
- 13A
- Filter Feature :
- No
- Assembly Length :
- 32.258mm
- Mating Alignment :
- With
- Datasheets
- 213826-1
Receptacle, Female Sockets Polyamide (PA), Nylon Panel Mount, Through Hole 9 Positions Solder Tin-Lead Tray A Threaded
213826-1 Overview
This product is packaged in a Receptacle, Female Sockets box.Panel Mount, Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the CPC Series 1 Series.By Panel, the part is mounted.Operating temperature is set to -55°C~105°C.
213826-1 Features
CPC Series 1 series
213826-1 Applications
There are a lot of TE Connectivity AMP Connectors
213826-1 Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
