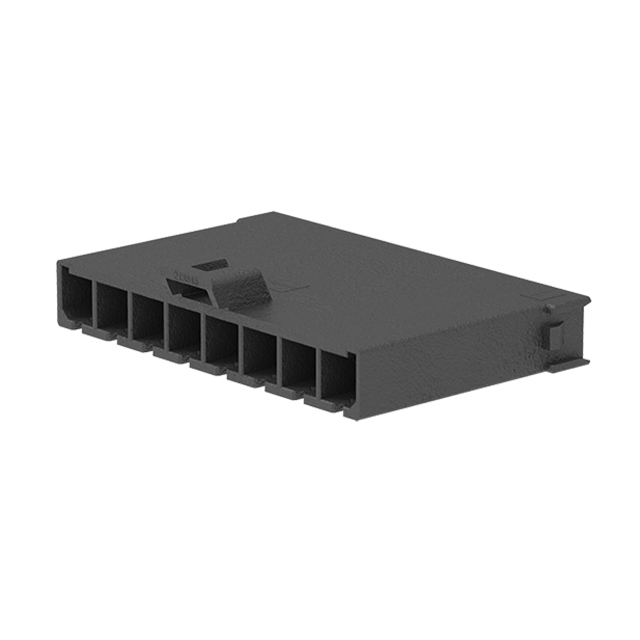

2138150108

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

RoHS :

Details

Pitch :

5.7 mm

Series :

213815

Tradename :

Mega-Fit

Housing Material :

Nylon

Minimum Operating Temperature :

- 40 C

Number of Positions :

8 Position

Fastening Type :

Latch Holder

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Current Rating :

26 A

Type :

Plug Housing

Maximum Operating Temperature :

+ 120 C

Voltage Rating :

600 V

Body Orientation :

Straight

Base Product Number :

213815

Color :

Black

Operating Temp Range :

-40C to 120C

Wire Gauge :

12-16(AWG)

Row Spacing :

-

Contact Type :

Male Pin

Contact Material :

Copper

Gender :

PL

Product Length (mm) :

48.25(mm)

Mounting Type :

Free Hanging (In-Line)

Mounting Style :

Cable Mount / Free Hanging

Features :

Glow Wire Compliant

Termination Style :

Crimp

Product :

Wire Housings

Housing Gender :

PLUG

Connector Type :

PLUG

Package :

Bag

Product Status :

Active

Packaging :

Bulk

Voltage Rating Max :

600VDC/600VAC

Mounting Angle :

Straight

Housing Color :

Black

Flammability Rating :

UL 94 V-0

Contact Plating :

Gold

Number of Rows :

1 Row

Number of Contact Rows :

1

Pitch (mm) :

5.7(mm)

Product Height (mm) :

32.4(mm)

Insulation Resistance :

1000 MOhms

Application :

Power, Wire-to-Wire

Contact Gender :

Pin (Male)

Number of Contacts :

8(POS)

Product Depth (mm) :

10.61(mm)

Note :

Contacts Not Included

Contact Termination :

Crimp
