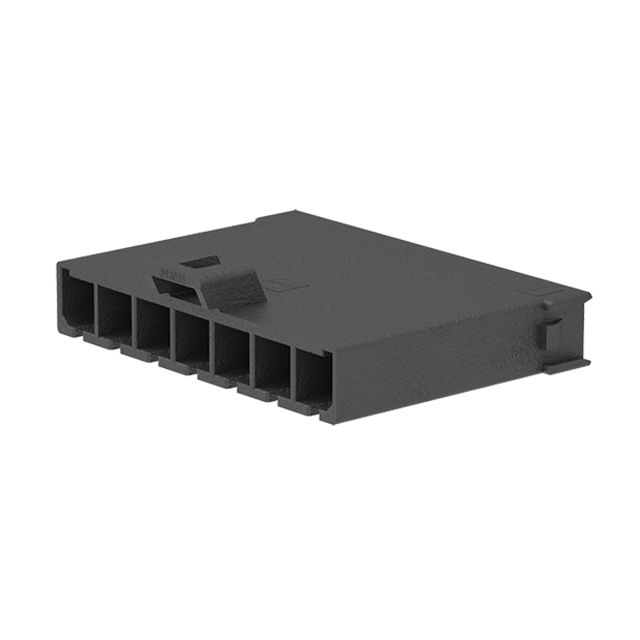

2138150107

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Termination Style :

Crimp

Contact Material :

Copper

Housing Color :

Black

Current Rating :

26 A

Mounting Type :

Free Hanging (In-Line)

Contact Plating :

Gold

Connector Type :

PLUG

Voltage Rating Max :

600VDC/600VAC

Voltage Rating :

600 V

Packaging :

Bulk

Operating Temp Range :

-40C to 120C

Minimum Operating Temperature :

- 40 C

Note :

Contacts Not Included

Application :

Power, Wire-to-Wire

Housing Gender :

PLUG

Mounting Style :

Cable Mount / Free Hanging

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Maximum Operating Temperature :

+ 120 C

Operating Temperature :

-40°C

RoHS :

Details

Wire Gauge :

12-16(AWG)

Type :

Crimp Housing

Product Status :

Active

Mounting Angle :

Straight

Features :

Glow Wire Compliant

Product :

Wire Housings

Gender :

PL

Product Length (mm) :

42.55(mm)

Housing Material :

Nylon

Base Product Number :

213815

Product Depth (mm) :

10.61(mm)

Fastening Type :

Latch Holder

Contact Termination :

Crimp

Series :

213815

Contact Type :

Male Pin

Number of Contacts :

7(POS)

Number of Contact Rows :

1

Pitch :

5.7 mm

Tradename :

Mega-Fit

Row Spacing :

-

Product Height (mm) :

32.4(mm)

Body Orientation :

Straight

Color :

Black

Package :

Box

Flammability Rating :

UL 94 V-0

Pitch (mm) :

5.7(mm)

Insulation Resistance :

1000 MOhms

Number of Rows :

1 Row

Number of Positions :

7 Position
