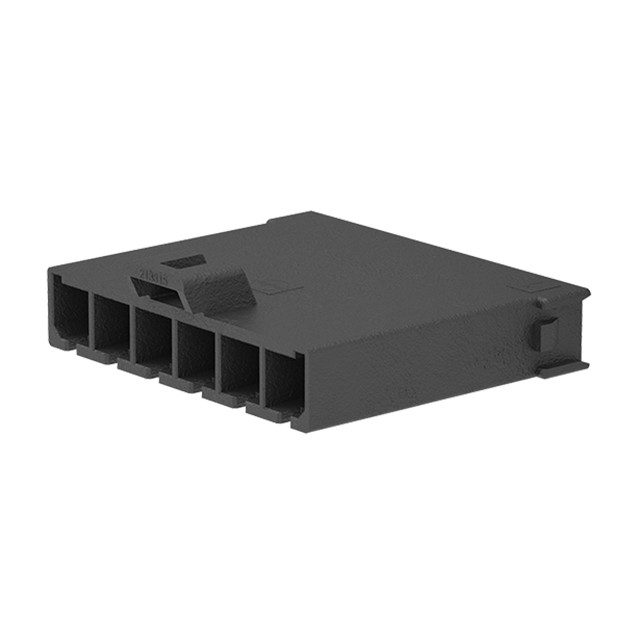

2138150106

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Note :

Contacts Not Included

Flammability Rating :

UL 94 V-0

Pitch (mm) :

5.7(mm)

Package :

Bag

Tradename :

Mega-Fit

Voltage Rating Max :

600VDC/600VAC

Type :

Plug Housing

Contact Type :

Male Pin

Maximum Operating Temperature :

+ 120 C

Mounting Style :

Cable Mount / Free Hanging

Wire Gauge :

12-16(AWG)

Operating Temp Range :

-40C to 120C

Series :

213815

Row Spacing :

-

Product Length (mm) :

36.85(mm)

Product Height (mm) :

32.4(mm)

Color :

Black

Contact Material :

Copper

Termination Style :

Crimp

Minimum Operating Temperature :

- 40 C

Voltage Rating :

600 V

Mounting Angle :

Straight

Contact Termination :

Crimp

Number of Contact Rows :

1

RoHS :

Details

Fastening Type :

Latch Holder

Housing Gender :

PLUG

Current Rating :

26 A

Product :

Wire Housings

Body Orientation :

Straight

Base Product Number :

213815

Features :

Glow Wire Compliant

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Connector Type :

PLUG

Product Status :

Active

Number of Rows :

1 Row

Pitch :

5.7 mm

Gender :

PL

Packaging :

Bulk

Number of Positions :

6 Position

Contact Plating :

Gold

Housing Material :

Nylon

Contact Gender :

Pin (Male)

Insulation Resistance :

1000 MOhms

Housing Color :

Black

Number of Contacts :

6(POS)

Mounting Type :

Free Hanging (In-Line)

Product Depth (mm) :

10.61(mm)

Application :

Power, Wire-to-Wire
