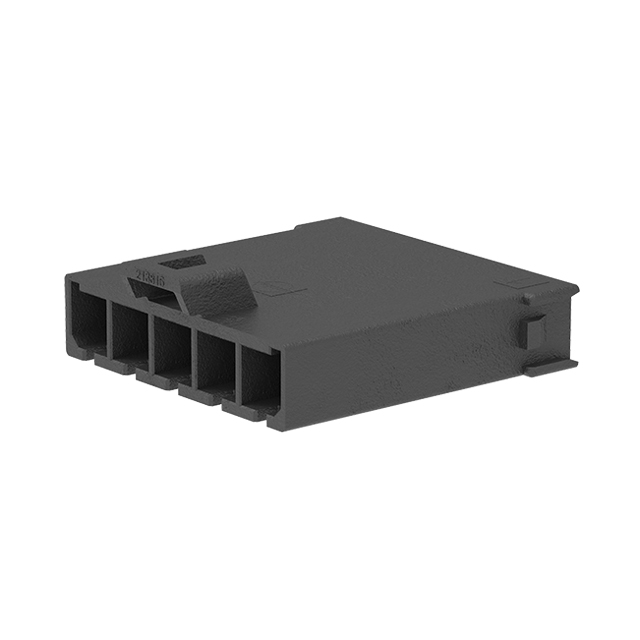

2138150105

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Product Length (mm) :

31.15(mm)

Product :

Wire Housings

Maximum Operating Temperature :

+ 120 C

Operating Temp Range :

-40C to 120C

Series :

213815

Fastening Type :

Latch Holder

Product Status :

Active

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Body Orientation :

Straight

Number of Contacts :

5(POS)

Contact Termination :

Crimp

Termination Style :

Crimp

Wire Gauge :

12-16(AWG)

Tradename :

Mega-Fit

Product Depth (mm) :

10.61(mm)

Contact Type :

Male Pin

Number of Positions :

5 Position

Application :

Power, Wire-to-Wire

Gender :

PL

Packaging :

Bulk

Color :

Black

Insulation Resistance :

1000 MOhms

Voltage Rating :

600 V

Mounting Angle :

Straight

Type :

Crimp Housing

Mounting Style :

Cable Mount / Free Hanging

Pitch :

5.7 mm

Features :

Glow Wire Compliant

Minimum Operating Temperature :

- 40 C

Number of Contact Rows :

1

RoHS :

Details

Housing Gender :

PLUG

Flammability Rating :

UL 94 V-0

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Nylon

Contact Material :

Copper

Note :

Contacts Not Included

Number of Rows :

1 Row

Base Product Number :

213815

Package :

Bag

Connector Type :

PLUG

Current Rating :

26 A

Contact Plating :

Gold

Voltage Rating Max :

600VDC/600VAC

Pitch (mm) :

5.7(mm)

Housing Color :

Black

Product Height (mm) :

32.4(mm)

Row Spacing :

-
