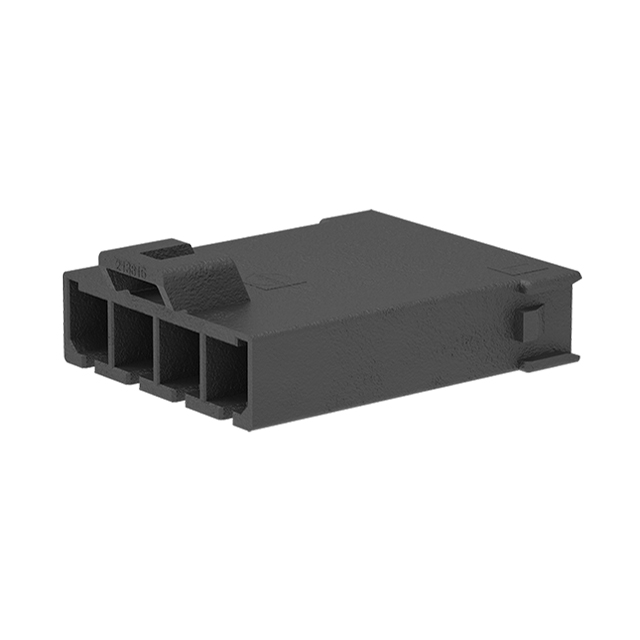

2138150104

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Pitch (mm) :

5.7(mm)

Mounting Angle :

Straight

Product :

Wire Housings

Packaging :

Bulk

Fastening Type :

Latch Holder

Type :

Plug Housing

Contact Material :

Copper

RoHS :

Details

Note :

Contacts Not Included

Contact Type :

Male Pin

Housing Color :

Black

Body Orientation :

Straight

Number of Contacts :

4(POS)

Number of Contact Rows :

1

Product Length (mm) :

25.45(mm)

Housing Material :

Nylon

Wire Gauge :

12-16(AWG)

Housing Gender :

PLUG

Number of Positions :

4 Position

Color :

Black

Tradename :

Mega-Fit

Voltage Rating Max :

600VDC/600VAC

Package :

Bag

Insulation Resistance :

1000 MOhms

Termination Style :

Crimp

Flammability Rating :

UL 94 V-0

Voltage Rating :

600 V

Product Depth (mm) :

10.61(mm)

Number of Rows :

1 Row

Features :

Glow Wire Compliant

Connector Type :

PLUG

Row Spacing :

-

Operating Temp Range :

-40C to 120C

Contact Termination :

Crimp

Minimum Operating Temperature :

- 40 C

Mounting Type :

Free Hanging (In-Line)

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Product Height (mm) :

32.4(mm)

Series :

213815

Gender :

PL

Contact Plating :

Gold

Product Status :

Active

Maximum Operating Temperature :

+ 120 C

Application :

Power, Wire-to-Wire

Current Rating :

26 A

Pitch :

5.7 mm

Contact Gender :

Pin (Male)

Base Product Number :

213815

Mounting Style :

Cable Mount / Free Hanging
