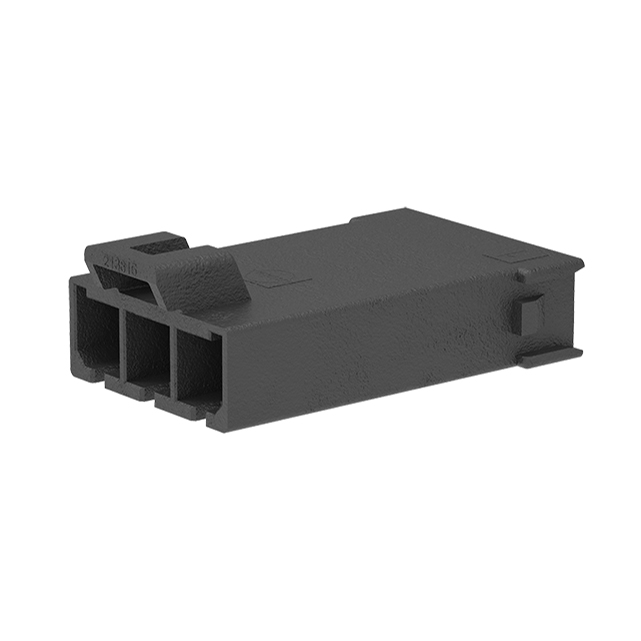

2138150103

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Product :

Wire Housings

Connector Type :

PLUG

Fastening Type :

Latch Holder

Product Depth (mm) :

10.61(mm)

Note :

Contacts Not Included

Contact Plating :

Gold

Maximum Operating Temperature :

+ 120 C

Contact Termination :

Crimp

Series :

213815

Type :

Crimp Housing

Operating Temp Range :

-40C to 120C

Product Length (mm) :

19.75(mm)

Tradename :

Mega-Fit

Pitch (mm) :

5.7(mm)

Contact Type :

Male Pin

Pitch :

5.7 mm

Mounting Style :

Cable Mount / Free Hanging

Termination Style :

Crimp

RoHS :

Details

Gender :

PL

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Housing Gender :

PLUG

Contact Material :

Copper

Package :

Bag

Voltage Rating Max :

600VDC/600VAC

Housing Color :

Black

Current Rating :

26 A

Product Status :

Active

Voltage Rating :

600 V

Body Orientation :

Straight

Features :

Glow Wire Compliant

Number of Positions :

3 Position

Mounting Type :

Free Hanging (In-Line)

Row Spacing :

-

Base Product Number :

213815

Number of Contacts :

3(POS)

Color :

Black

Insulation Resistance :

1000 MOhms

Wire Gauge :

12-16(AWG)

Application :

Power, Wire-to-Wire

Number of Contact Rows :

1

Housing Material :

Nylon

Minimum Operating Temperature :

- 40 C

Flammability Rating :

UL 94 V-0

Mounting Angle :

Straight

Product Height (mm) :

32.4(mm)

Packaging :

Bulk

Number of Rows :

1 Row
