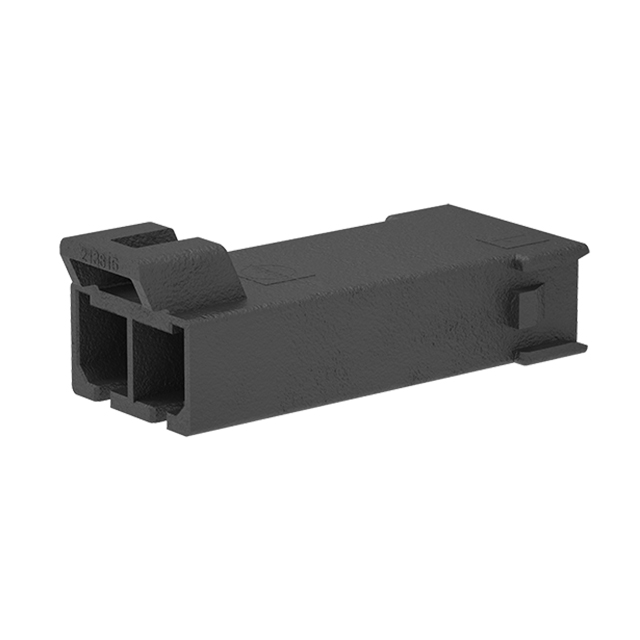

2138150102

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Packaging :

Bulk

Contact Plating :

Gold

Number of Positions :

2 Position

Number of Rows :

1 Row

Product Status :

Active

Body Orientation :

Straight

Minimum Operating Temperature :

- 40 C

Package :

Bulk

Flammability Rating :

UL 94 V-0

Operating Temp Range :

-40C to 120C

Note :

Contacts Not Included

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Base Product Number :

213815

Mounting Style :

Cable Mount / Free Hanging

Termination Style :

Crimp

Current Rating :

26 A

Housing Gender :

PLUG

Wire Gauge :

12-16(AWG)

Gender :

PL

Pitch (mm) :

5.7(mm)

Product :

Wire Housings

Row Spacing :

-

Product Length (mm) :

14.05(mm)

Tradename :

Mega-Fit

Application :

Power, Wire-to-Wire

Type :

Plug Housing

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Nylon

Voltage Rating :

600 V

Fastening Type :

Latch Holder

Number of Contacts :

2(POS)

Insulation Resistance :

1000 MOhms

Product Depth (mm) :

10.61(mm)

Contact Type :

Male Pin

Connector Type :

PLUG

Contact Termination :

Crimp

Mounting Angle :

Straight

Pitch :

5.7 mm

Housing Color :

Black

RoHS :

Details

Color :

Black

Number of Contact Rows :

1

Contact Gender :

Pin (Male)

Maximum Operating Temperature :

+ 120 C

Voltage Rating Max :

600V

Features :

Glow Wire Compliant

Product Height (mm) :

32.4(mm)

Contact Material :

Copper

Series :

213815
