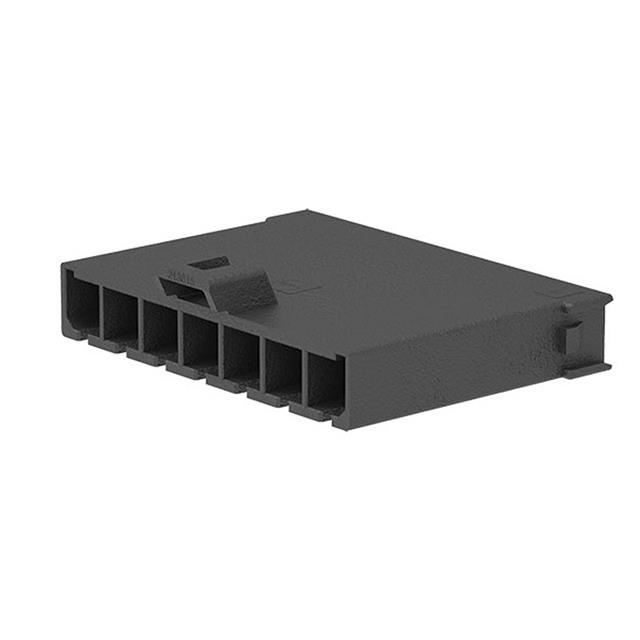

213815-0107

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Product Status :

Active

Minimum Operating Temperature :

- 40 C

Mounting Type :

Free Hanging (In-Line)

Row Spacing :

-

Product Height (mm) :

32.4(mm)

RoHS :

Details

Mounting Style :

Cable Mount / Free Hanging

Base Product Number :

213815

Note :

Contacts Not Included

Features :

Glow Wire Compliant

Product :

Wire Housings

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Mounting Angle :

Straight

Termination Style :

Crimp

Contact Type :

Male Pin

Wire Gauge :

12-16(AWG)

Pitch (mm) :

5.7(mm)

Voltage Rating Max :

600VDC/600VAC

Tradename :

Mega-Fit

Voltage Rating :

600 V

Type :

Crimp Housing

Application :

Power, Wire-to-Wire

Product Depth (mm) :

10.61(mm)

Number of Positions :

7 Position

Package :

Box

Series :

213815

Connector Type :

PLUG

Gender :

PL

Number of Contacts :

7(POS)

Flammability Rating :

UL 94 V-0

Packaging :

Bulk

Housing Gender :

PLUG

Fastening Type :

Latch Holder

Contact Termination :

Crimp

Contact Material :

Copper

Housing Material :

Nylon

Operating Temp Range :

-40C to 120C

Operating Temperature :

-40°C

Pitch :

5.7 mm

Maximum Operating Temperature :

+ 120 C

Current Rating :

26 A

Contact Plating :

Gold

Number of Contact Rows :

1

Body Orientation :

Straight

Product Length (mm) :

42.55(mm)

Insulation Resistance :

1000 MOhms

Number of Rows :

1 Row

Color :

Black

Housing Color :

Black
