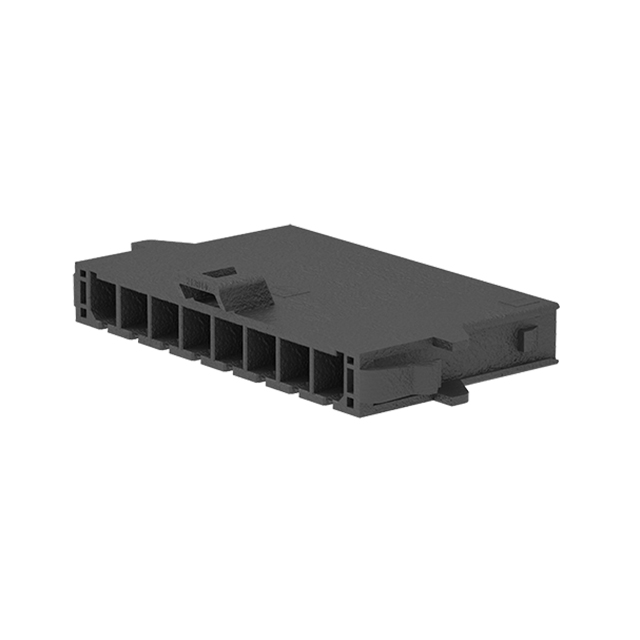

2138141108

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Number of Contacts :

8(POS)

Number of Rows :

1 Row

Maximum Operating Temperature :

+ 120 C

Number of Contact Rows :

1

Contact Gender :

Pin (Male)

Flammability Rating :

UL 94 V-0

Base Product Number :

213814

Housing Gender :

PLUG

Mounting Style :

Panel Mount

Features :

Glow Wire Compliant

Row Spacing :

-

Fastening Type :

Latch Holder

Pitch (mm) :

5.7(mm)

Number of Positions :

8 Position

RoHS :

Details

Voltage Rating :

600 V

Product :

Wire Housings

Minimum Operating Temperature :

- 40 C

Contact Type :

Male Pin

Product Status :

Active

Operating Temp Range :

-40C to 120C

Body Orientation :

Straight

Termination Style :

Crimp

Packaging :

Bulk

Application :

Power, Wire-to-Wire

Current Rating :

26 A

Pitch :

5.7 mm

Product Length (mm) :

56.45(mm)

Contact Plating :

Gold

Housing Color :

Black

Series :

213814

Insulation Resistance :

1000 MOhms

Color :

Black

Product Height (mm) :

32.43(mm)

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Contact Material :

Copper

Product Depth (mm) :

10.61(mm)

Wire Gauge :

12-16(AWG)

Type :

Plug Housing

Housing Material :

Nylon

Tradename :

Mega-Fit

Mounting Type :

Panel Mount, Snap-In

Note :

Contacts Not Included

Gender :

PL

Connector Type :

PLUG

Contact Termination :

Crimp

Voltage Rating Max :

600VDC/600VAC

Mounting Angle :

Straight

Package :

Bag
