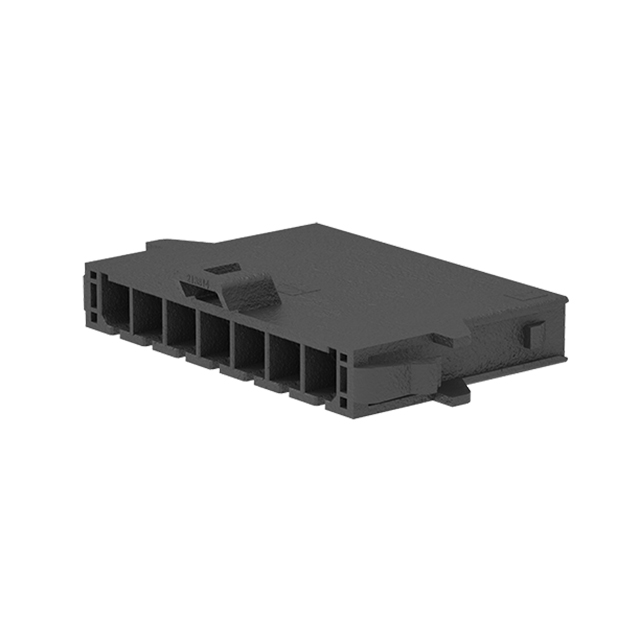

2138141107

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Mounting Style :

Panel Mount

Row Spacing :

-

Number of Contacts :

7(POS)

Connector Type :

PLUG

Flammability Rating :

UL 94 V-0

Product Depth (mm) :

10.61(mm)

Gender :

PL

Pitch :

5.7 mm

Application :

Power, Wire-to-Wire

RoHS :

Details

Fastening Type :

Latch Holder

Product Length (mm) :

50.75(mm)

Product :

Wire Housings

Minimum Operating Temperature :

- 40 C

Product Status :

Active

Number of Contact Rows :

1

Number of Rows :

1 Row

Mounting Angle :

Straight

Voltage Rating Max :

600VDC/600VAC

Contact Plating :

Gold

Contact Type :

Male Pin

Maximum Operating Temperature :

+ 120 C

Operating Temp Range :

-40C to 120C

Mounting Type :

Panel Mount, Snap-In

Number of Positions :

7 Position

Features :

Glow Wire Compliant

Wire Gauge :

12-16(AWG)

Tradename :

Mega-Fit

Insulation Resistance :

1000 MOhms

Note :

Contacts Not Included

Termination Style :

Crimp

Housing Gender :

PLUG

Color :

Black

Contact Material :

Copper

Series :

213814

Pitch (mm) :

5.7(mm)

Packaging :

Bulk

Voltage Rating :

600 V

Housing Material :

Nylon

Product Height (mm) :

32.43(mm)

Type :

Crimp Housing

Housing Color :

Black

Package :

Bag

Contact Termination :

Crimp

Body Orientation :

Straight

Base Product Number :

213814

Current Rating :

26 A

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts
