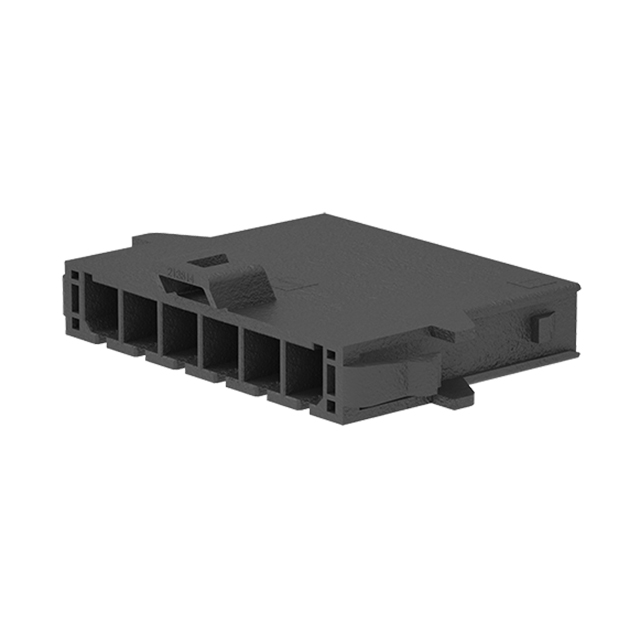

2138141106

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Mounting Angle :

Straight

Contact Type :

Male Pin

Termination Style :

Crimp

Maximum Operating Temperature :

+ 120 C

Number of Contact Rows :

1

Housing Color :

Black

Package :

Box

Contact Gender :

Pin (Male)

Row Spacing :

-

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Minimum Operating Temperature :

- 40 C

Mounting Style :

Panel Mount

Type :

Plug Housing

Base Product Number :

213814

Features :

Glow Wire Compliant

Contact Termination :

Crimp

Number of Positions :

6 Position

Housing Gender :

PLUG

Number of Rows :

1 Row

Product Length (mm) :

45.05(mm)

Series :

213814

Fastening Type :

Latch Holder

Pitch :

5.7 mm

Product :

Wire Housings

Flammability Rating :

UL 94 V-0

Body Orientation :

Straight

Product Height (mm) :

32.43(mm)

Product Depth (mm) :

10.61(mm)

Contact Material :

Copper

Wire Gauge :

12-16(AWG)

Mounting Type :

Panel Mount, Snap-In

Operating Temp Range :

-40C to 120C

RoHS :

Details

Color :

Black

Number of Contacts :

6(POS)

Tradename :

Mega-Fit

Insulation Resistance :

1000 MOhms

Housing Material :

Nylon

Voltage Rating :

600 V

Contact Plating :

Gold

Current Rating :

26 A

Note :

Contacts Not Included

Voltage Rating Max :

600VDC/600VAC

Connector Type :

PLUG

Operating Temperature :

-40°C

Product Status :

Active

Gender :

PL

Application :

Power, Wire-to-Wire

Pitch (mm) :

5.7(mm)

Packaging :

Bulk
