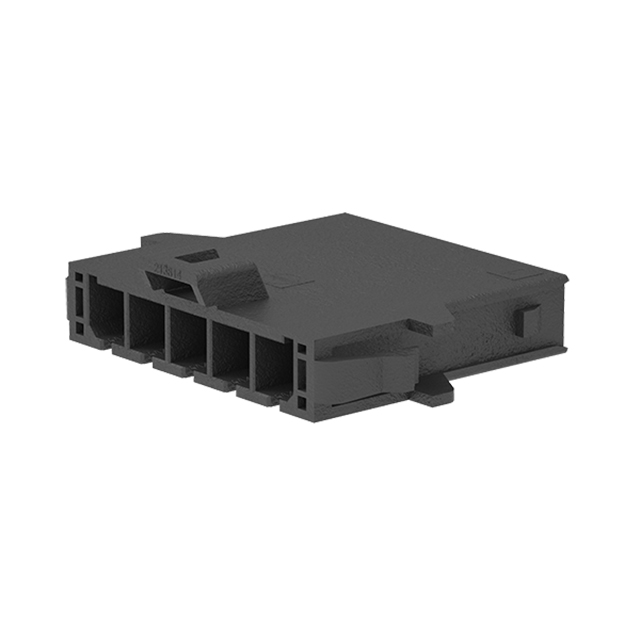

2138141105

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Wire Gauge :

12-16(AWG)

Row Spacing :

-

Contact Termination :

Crimp

Color :

Black

Contact Material :

Copper

Mounting Style :

Panel Mount

Number of Contact Rows :

1

Number of Positions :

5 Position

RoHS :

Details

Current Rating :

26 A

Housing Color :

Black

Product Height (mm) :

32.43(mm)

Voltage Rating Max :

600VDC/600VAC

Gender :

PL

Flammability Rating :

UL 94 V-0

Fastening Type :

Latch Holder

Pitch (mm) :

5.7(mm)

Operating Temp Range :

-40C to 120C

Minimum Operating Temperature :

- 40 C

Note :

Contacts Not Included

Number of Contacts :

5(POS)

Product :

Wire Housings

Maximum Operating Temperature :

+ 120 C

Housing Gender :

PLUG

Series :

213814

Body Orientation :

Straight

Features :

Glow Wire Compliant

Packaging :

Bulk

Pitch :

5.7 mm

Product Depth (mm) :

10.61(mm)

Contact Type :

Male Pin

Voltage Rating :

600 V

Mounting Angle :

Straight

Package :

Bag

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Connector Type :

PLUG

Mounting Type :

Panel Mount, Snap-In

Tradename :

Mega-Fit

Contact Plating :

Gold

Product Status :

Active

Termination Style :

Crimp

Base Product Number :

213814

Product Length (mm) :

39.35(mm)

Type :

Crimp Housing

Housing Material :

Nylon

Number of Rows :

1 Row

Application :

Power, Wire-to-Wire

Insulation Resistance :

1000 MOhms
