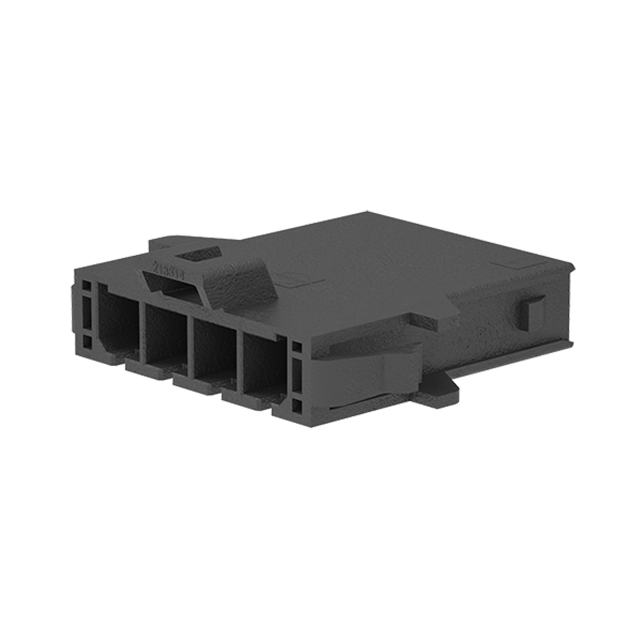

2138141104

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Package :

Bag

Termination Style :

Crimp

Flammability Rating :

UL 94 V-0

Housing Color :

Black

Pitch (mm) :

5.7(mm)

Tradename :

Mega-Fit

Voltage Rating Max :

600VDC/600VAC

Product Depth (mm) :

10.61(mm)

Maximum Operating Temperature :

+ 120 C

Contact Material :

Copper

Type :

Plug Housing

Housing Gender :

PLUG

Insulation Resistance :

1000 MOhms

Current Rating :

26 A

Series :

213814

Voltage Rating :

600 V

Features :

Glow Wire Compliant

Product Height (mm) :

32.43(mm)

Number of Contacts :

4(POS)

Operating Temp Range :

-40C to 120C

Mounting Type :

Panel Mount, Snap-In

Pitch :

5.7 mm

Gender :

PL

Body Orientation :

Straight

Contact Gender :

Pin (Male)

Application :

Power, Wire-to-Wire

Row Spacing :

-

Contact Type :

Male Pin

Number of Rows :

1 Row

Connector Type :

PLUG

Contact Plating :

Gold

Product Status :

Active

RoHS :

Details

Product :

Wire Housings

Product Length (mm) :

33.65(mm)

Contact Termination :

Crimp

Number of Contact Rows :

1

Fastening Type :

Latch Holder

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Mounting Style :

Panel Mount

Color :

Black

Minimum Operating Temperature :

- 40 C

Number of Positions :

4 Position

Note :

Contacts Not Included

Base Product Number :

213814

Packaging :

Bulk

Mounting Angle :

Straight

Wire Gauge :

12-16(AWG)

Housing Material :

Nylon
