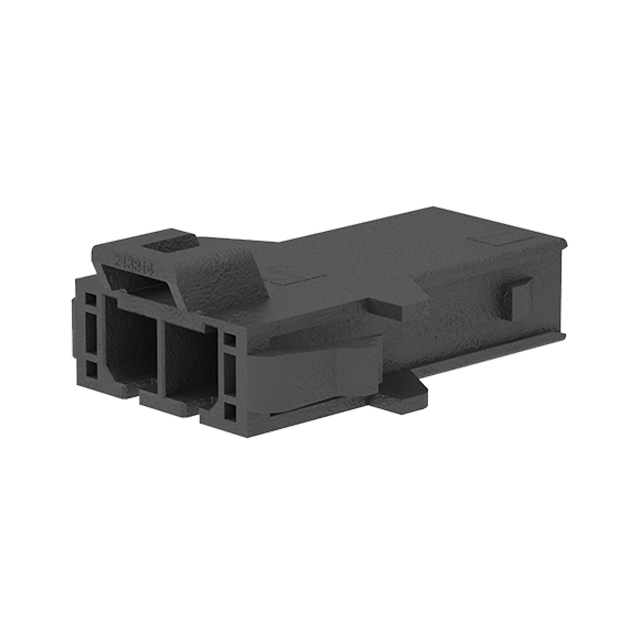

2138141102

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Note :

Contacts Not Included

Mounting Type :

Panel Mount, Snap-In

Package :

Bag

Row Spacing :

-

For Use With :

Molex Mega-Fit 105417, 105418 Series Crimp Contacts

Connector Type :

PLUG

Product Status :

Active

Pitch (mm) :

5.7(mm)

Contact Material :

Copper

Voltage Rating :

600 V

Current Rating :

26 A

Insulation Resistance :

1000 MOhms

Number of Contacts :

2(POS)

Maximum Operating Temperature :

+ 120 C

Product Length (mm) :

22.25(mm)

Gender :

PL

Features :

Glow Wire Compliant

Type :

Plug Housing

Mounting Angle :

Straight

Number of Contact Rows :

1

Contact Plating :

Gold

Product Height (mm) :

32.43(mm)

Base Product Number :

213814

Tradename :

Mega-Fit

Packaging :

Bulk

Housing Material :

Nylon

Number of Rows :

1 Row

Wire Gauge :

12-16(AWG)

Minimum Operating Temperature :

- 40 C

Housing Color :

Black

Flammability Rating :

UL 94 V-0

Pitch :

5.7 mm

Contact Gender :

Pin (Male)

Body Orientation :

Straight

Fastening Type :

Latch Holder

Contact Type :

Male Pin

Application :

Power, Wire-to-Wire

Voltage Rating Max :

600VDC/600VAC

Product Depth (mm) :

10.61(mm)

RoHS :

Details

Color :

Black

Housing Gender :

PLUG

Number of Positions :

2 Position

Operating Temp Range :

-40C to 120C

Product :

Wire Housings

Mounting Style :

Panel Mount

Series :

213814

Termination Style :

Crimp

Contact Termination :

Crimp
