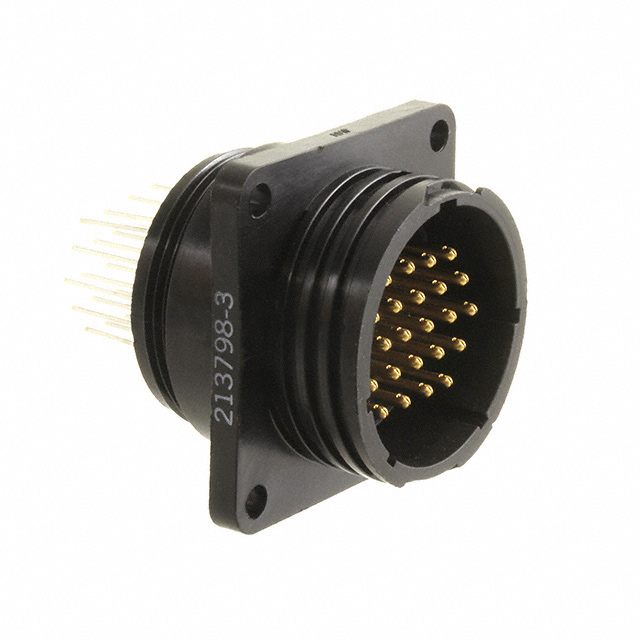

213798-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Assemblies

Mounting Type :

Panel Mount, Through Hole

Length :

44.45mm

Published :

2007

Contact Finish - Mating :

Gold

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Shell Material :

Polyamide (PA), Nylon

Depth :

44.45mm

Empty Shell :

No

ELV :

Compliant

Fastening Type :

Threaded

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Shell Size - Insert :

23-24

Mating Alignment :

With

Plating :

Thermoplastic

Packaging :

Tray

Plating Thickness :

762 nm

Mixed Contacts :

No

Number of Positions :

24

Number of Ports :

1

Sealable :

No

Pbfree Code :

yes

Lead Free :

Lead Free

Mount :

Panel

Housing Material :

Nylon

Current Rating :

13A

Material :

Plastic

Factory Lead Time :

7 Weeks

Number of Power Positions :

0

Assembly Length :

50.1142mm

Filter Feature :

No

Contact Material :

Brass

Orientation :

A

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Reference Standard :

UL

Total Number of Contacts :

24

Voltage - Rated :

250VAC/DC

Series :

CPC Series 1

Backshell Type :

Solid

Connector Type :

Receptacle, Male Pins

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Lead Length :

15.7mm

Operating Temperature :

-55°C~105°C

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Supply Voltage :

250V

Mounting Feature :

Flange

MIL Conformance :

No

Termination :

Solder

Housing Color :

Black
