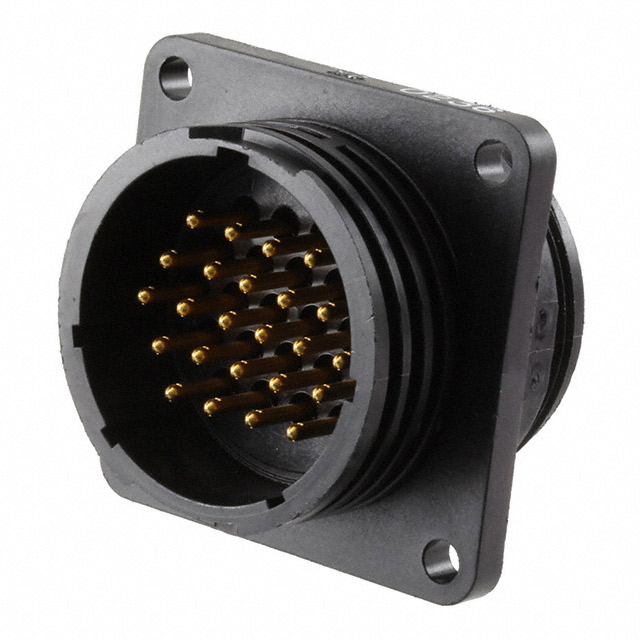

213780-1
Or copy the link below:
- Mfr.Part #
- 213780-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 24POS GOLD SOLDER
- Stock
- 52
- In Stock ：
- 52
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Circular Connector Assemblies
- Mounting Feature :
- Flange
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Length :
- 5.59mm
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- Plating Thickness :
- 762 nm
- Color :
- Black
- JESD-609 Code :
- e0
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Mount :
- Panel
- Published :
- 2009
- Backshell Type :
- Solid
- Sealable :
- No
- IEC Conformance :
- No
- Operating Temperature :
- -55°C~105°C
- Empty Shell :
- No
- Number of Power Positions :
- 0
- Mounting Type :
- Panel Mount, Through Hole
- Total Number of Contacts :
- 24
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle, Male Pins
- Mating Alignment :
- With
- Insulation Diameter :
- 2.54 mm
- DIN Conformance :
- No
- Series :
- CPC Series 1
- Packaging :
- Tray
- Lead Free :
- Contains Lead
- Orientation :
- A
- Shell Size - Insert :
- 23-24
- ELV :
- Non-Compliant
- Factory Lead Time :
- 8 Weeks
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Threaded
- Operating Supply Voltage :
- 250V
- Contact Material :
- Brass
- Shell Material :
- Polyamide (PA), Nylon
- Number of Positions :
- 24
- Filter Feature :
- No
- MIL Conformance :
- No
- Current Rating :
- 13A
- Housing Material :
- Nylon
- Voltage - Rated :
- 250VAC/DC
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- Datasheets
- 213780-1
Receptacle, Male Pins Polyamide (PA), Nylon Panel Mount, Through Hole 24 Positions Solder Gold Tray A Threaded
213780-1 Overview
It comes in Receptacle, Male Pins packaging.The device's mounting type is Panel Mount, Through Hole.In order to package the product, a Tray case is used.It belongs to the CPC Series 1 Series of products.The part is mounted by Panel.The device runs in -55°C~105°C Operating Temperature.
213780-1 Features
CPC Series 1 series
213780-1 Applications
There are a lot of TE Connectivity AMP Connectors
213780-1 Circular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
