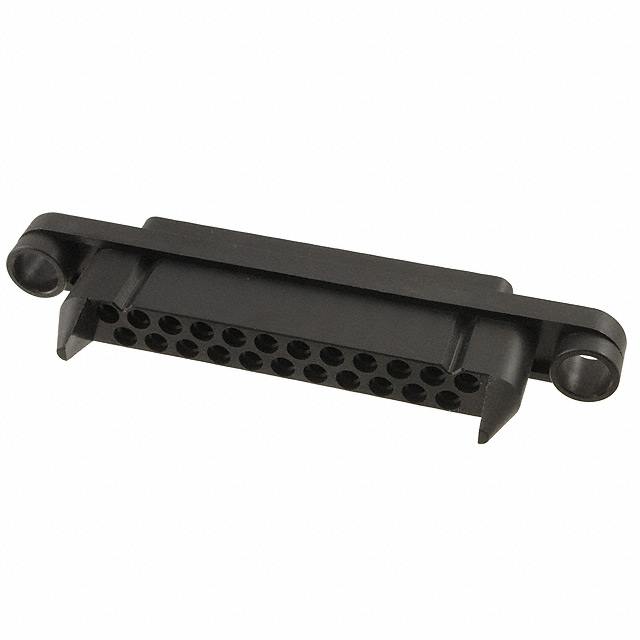

213766-1
Or copy the link below:
- Mfr.Part #
- 213766-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG DRAWER 23POS BLK
- Stock
- 27,698
- In Stock ：
- 27,698
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Backplane Connector Housings
- Connector Style :
- Drawer
- MIL Conformance :
- No
- UL Flammability Code :
- 94V-0
- Feature :
- Guide Pin
- Insulation Resistance :
- 5000000000Ohm
- Connector Type :
- Housing for Female Sockets
- Approval Agency :
- UL
- Row Spacing :
- 5.08 mm
- ECCN Code :
- EAR99
- Length :
- 4.842mm
- Total Number of Contacts :
- 23
- Panel Thickness :
- 2.3114mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire/Cable Type :
- Discrete
- Max Operating Temperature :
- 130°C
- Pitch :
- 6.35mm
- Contact Gender :
- Male
- IEC Conformance :
- No
- Mount :
- Panel
- Mixed Contacts :
- No
- Polarization Key :
- POLARIZED HOUSING
- Empty Shell :
- No
- Body Breadth :
- 0.6 inch
- Lead Free :
- Lead Free
- Mounting Type :
- Panel Mount
- Termination :
- Crimp
- Number of Rows :
- 2
- Orientation :
- Straight
- Operating Supply Voltage :
- 600V
- Max Voltage Rating (AC) :
- 600V
- Option :
- GENERAL PURPOSE
- Shell Material :
- GLASS FILLED THERMOPLASTIC
- Contact Finish - Mating :
- NOT SPECIFIED
- ELV :
- Compliant
- Contact Material :
- NOT SPECIFIED
- Housing Material :
- Polyester
- Packaging :
- Bulk
- Filter Feature :
- No
- Contact Pattern :
- STAGGERED
- VDE Tested :
- yes
- Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Min Operating Temperature :
- -55°C
- Pbfree Code :
- yes
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 4 Weeks
- Current Rating :
- 14A
- Voltage - Rated :
- 600V
- Published :
- 2003
- Number of Positions :
- 23
- HTS Code :
- 8536.69.40.30
- Reliability :
- COMMERCIAL
- Connector Usage :
- PLUG
- Note :
- Contacts Not Included
- Series :
- Metrimate
- Width :
- 1.52mm
- RoHS Status :
- RoHS Compliant
- DIN Conformance :
- No
- Datasheets
- 213766-1
213766-1 datasheet pdf and Backplane Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
