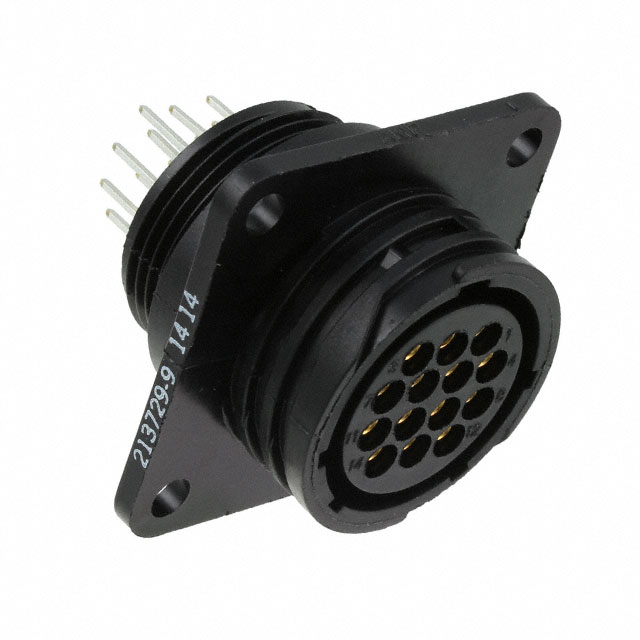

213729-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Assemblies

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Panel Mount, Through Hole

REACH SVHC :

No SVHC

Gender :

Receptacle

Shell Material :

Polyamide (PA), Nylon

Lead Length :

9.35mm

RoHS Status :

RoHS Compliant

Total Number of Contacts :

14

Orientation :

A

Termination :

Solder

Mixed Contacts :

No

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Material :

Plastic

Mating Alignment :

With

Flammability Rating :

UL94 V-0

Assembly Length :

36.0172mm

Housing Color :

Black

Filter Feature :

No

Packaging :

Tray

Depth :

36.45mm

Contact Finish - Mating :

Gold

Operating Temperature :

-55°C~105°C

Shell Size - Insert :

17-14

Operating Supply Voltage :

250V

Published :

2007

Sealable :

No

Number of Power Positions :

0

Backshell Type :

Solid

Fastening Type :

Threaded

Current Rating :

13A

Contact Gender :

FEMALE

IEC Conformance :

No

Number of Positions :

14

Mounting Feature :

Flange

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

250VAC/DC

Series :

CPC Series 1

Plating Thickness :

762 nm

Length :

36.45mm

Contact Material :

Brass

Pbfree Code :

yes

Factory Lead Time :

7 Weeks

MIL Conformance :

No

DIN Conformance :

No

Ratings :

IP65

Empty Shell :

No

Number of Ports :

1

Housing Material :

Thermoplastic

Mount :

Panel

Body Material :

Nylon, Polyamide

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Connector Type :

Receptacle, Female Sockets
