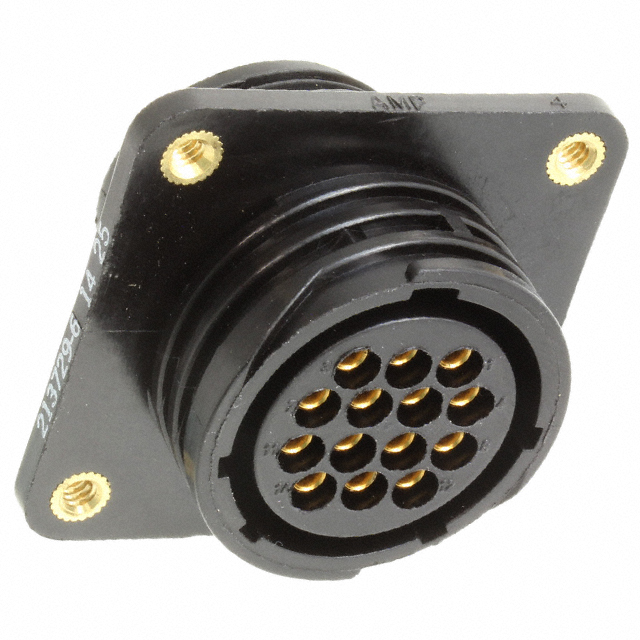

213729-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Assemblies

Packaging :

Tray

Orientation :

A

Total Number of Contacts :

14

MIL Conformance :

No

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Number of Ports :

1

Lead Length :

9.35mm

Published :

2007

Shell Size - Insert :

17-14

Contact Gender :

FEMALE

Sealable :

No

Mounting Type :

Panel Mount, Through Hole

DIN Conformance :

No

Contact Finish - Mating :

Gold

IEC Conformance :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Mount :

Panel

Pbfree Code :

yes

Termination :

Solder

Mounting Feature :

Flange

Number of Positions :

14

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Color :

Black

Mixed Contacts :

No

Series :

CPC Series 1

Shell Material :

Polyamide (PA), Nylon

Fastening Type :

Threaded

RoHS Status :

RoHS Compliant

Operating Temperature :

-55°C~105°C

Number of Power Positions :

0

Assembly Length :

36.0172mm

ELV :

Compliant

Factory Lead Time :

14 Weeks

Backshell Type :

Solid

Empty Shell :

No

Depth :

36.45mm

Contact Material :

Brass

Housing Material :

Thermoplastic

Connector Type :

Receptacle, Female Sockets

Operating Supply Voltage :

250V

Mating Alignment :

With

Length :

36.45mm

Lead Free :

Lead Free

Current Rating :

13A

Flammability Rating :

UL94 V-0

Voltage - Rated :

250VAC/DC

Material Flammability Rating :

UL94 V-0
