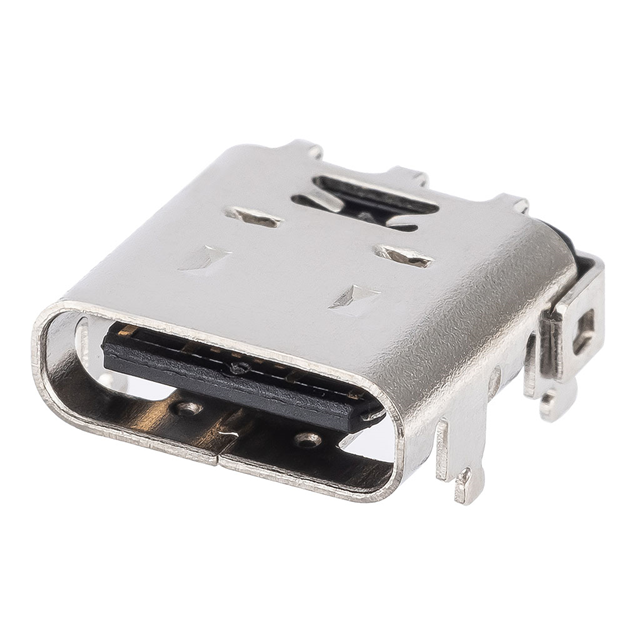

2137160001
Or copy the link below:
- Mfr.Part #
- 2137160001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT USB2.0 TYPE C 24POS RA
- Stock
- 14,884
- In Stock ：
- 14,884
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- Current Rating :
- 5 A
- Number of Rows :
- 2
- Current Rating (Amps) :
- 0.5A, 1.25A, 5A
- Termination Style :
- SMD/SMT
- Product :
- USB Type C Connectors
- Gender :
- Receptacle
- Panel Mount :
- yes
- Contact Finish :
- Gold
- Number of Ports :
- 1
- Type :
- Type C
- Package :
- Digi-Reel?
- Termination :
- Solder
- Voltage Rating :
- 30 VAC, 30 VDC
- Mating Cycles :
- 10000
- Insulation Color :
- Black
- Body Orientation :
- RIGHT ANGLE
- Mounting Feature :
- Horizontal
- Number of Contacts :
- 24 (16+8 Dummy)
- Shell/Shielding Material :
- Steel, Stainless
- Specifications :
- USB 2.0
- Mounting Style :
- Top-Mount
- Ingress Protection :
- -
- Product Status :
- Active
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 30VDC
- Shielded :
- yes
- Base Product Number :
- 213716
- Shield Type :
- Full Shield
- Orientation :
- RIGHT ANGLE
- Subcategory :
- USB Connectors
- Operating Temperature :
- -30°C ~ 85°C
- Mounting Angle :
- RIGHT ANGLE
- Shielding :
- Shielded
- Product Type :
- USB Connectors
- Contact Material :
- COPPER ALLOY
- Minimum Operating Temperature :
- - 30 C
- Series :
- 213716
- Connector Type :
- USB-C (USB TYPE-C)
- Mounting Type :
- Through Hole, Right Angle
- Component Type :
- Receptacle
- Standard :
- USB 2.0
- Contact Plating :
- Gold Plated Contacts
- Maximum Operating Temperature :
- + 85 C
- Features :
- Board Guide
- Termination Method :
- Surface Mount
- Datasheets
- 2137160001
