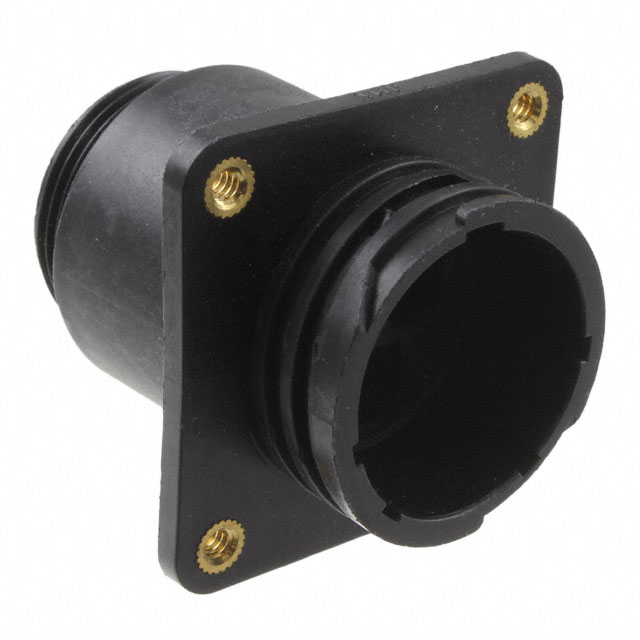

213581-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Circular Connector Housings

Operating Temperature :

-55°C~105°C

Operating Supply Voltage :

600V

RoHS Status :

RoHS Compliant

ELV :

Compliant

Contact Shape :

RECTANGULAR

Packaging :

Bulk

Contact Type :

Crimp

Mixed Contacts :

No

Shielding :

Unshielded

Insert Material :

Thermoplastic

Connector Type :

Receptacle Housing

Length :

41.53mm

Orientation :

Keyed

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Type :

For Male Pins

IEC Conformance :

No

Published :

1997

Number of Positions :

3 (Power)

Mount :

Panel

Mounting Type :

Panel Mount

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Note :

Contacts Not Included

Housing Color :

Black

Material Flammability Rating :

UL94 V-0

Sealable :

No

Factory Lead Time :

14 Weeks

Depth :

36.45mm

Number of Power Positions :

3

Series :

CPC Series 3

Pbfree Code :

yes

Fastening Type :

Threaded

Contact Material :

Copper

Housing Material :

Nylon

Option :

GENERAL PURPOSE

Shell Size - Insert :

17-3

MIL Conformance :

No

DIN Conformance :

No

Empty Shell :

yes

Mating Retention :

With

Contact Gender :

Male

Total Number of Contacts :

3

Shell Material :

Polyamide (PA), Nylon

Number of Signal Positions :

0

Mounting Feature :

Flange

Flammability Rating :

UL94 V-0

Insulation Diameter :

5.588 mm

Filter Feature :

No

Gender :

FEMALE
