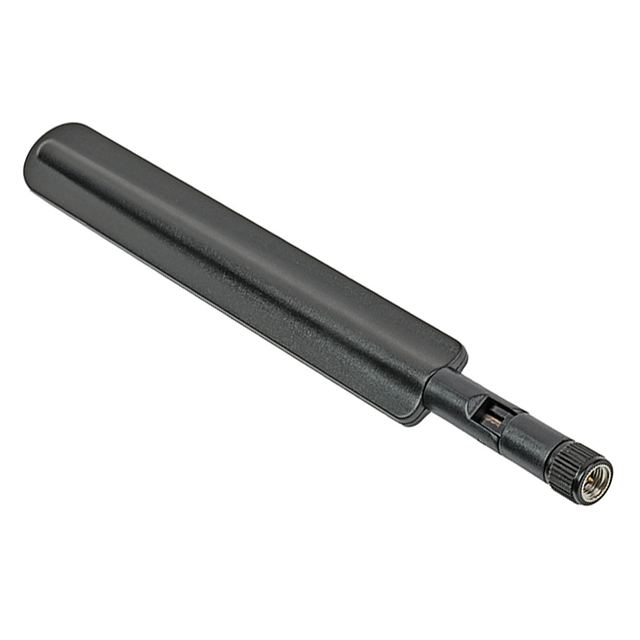

2135230001
Or copy the link below:
- Mfr.Part #
- 2135230001
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- LTE ANTENNA_HINGED_B_M
- Stock
- 1,263
- In Stock ：
- 1,263
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- RF Antennas
- Height (Max) :
- 6.752 (171.50mm)
- Applications :
- LTE
- Frequency (Center/Band) :
- 829MHz, 2.2GHz
- Antenna Type :
- Whip
- VSWR :
- -
- Width :
- 19.4 mm
- Antenna Gain :
- 4.8dBi
- RoHS :
- Details
- Return Loss :
- -10dB, -5dB
- Mounting Type :
- Connector Mount
- Mounting Style :
- Panel Mount
- Product :
- Outdoor Antennas
- Cable Type :
- -
- Features :
- -
- Polarization :
- Linear
- Frequency Group :
- UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
- Length :
- 171.5 mm
- Frequency (Min) :
- 698(MHz)
- RF Family/Standard :
- Cellular
- Input Power :
- 2W
- Number of Bands :
- 2 Band
- Product Status :
- Active
- Series :
- 213523
- Antenna Connector Type :
- RP-SMA Male
- Style :
- Blade Tilt / Swivel
- Rad Hardened :
- No
- Base Product Number :
- 213523
- Antenna Mounting :
- SMA Connector
- Center Frequency :
- 829 MHz, 2200 MHz
- Type :
- Passive Antenna
- Package :
- Bag
- Termination :
- SMA Male
- Frequency :
- 2700(MHz)
- Ingress Protection :
- -
- Termination Style :
- Connector
- Frequency Range :
- 698, 960, 1710, 2690 MHz
- Packaging :
- Bulk
- Input Impedance :
- 50Ohm
- Connector Type :
- SMA
- Gain :
- 2.3 dBi, 4.8 dBi
- Datasheets
- 2135230001
