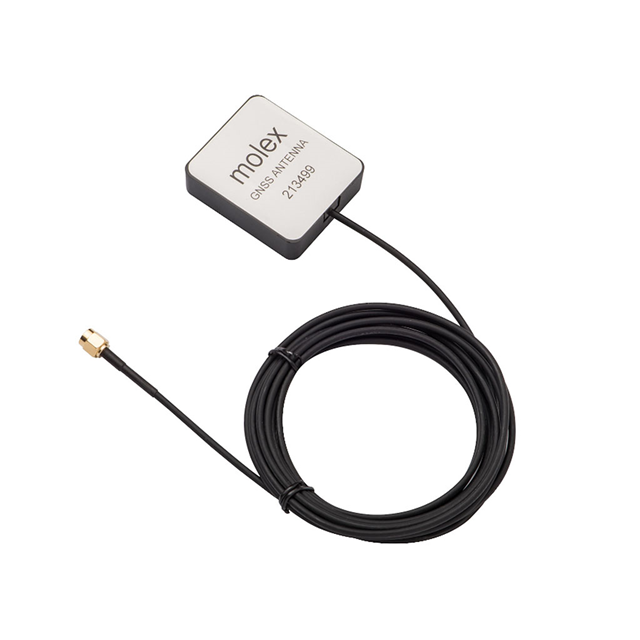

2134993000

Manufacturer :

Molex

Product Category :

RF Antennas

Frequency Group :

UHF (1GHz ~ 2GHz)

Height (Max) :

0.657" (16.70mm)

Gain :

-1.7dBi, -0.4dBi, -1.4dBi

Polarization :

RHCP

Ingress Protection :

-

Applications :

Beidou, Galileo, GLONASS, GNSS, GPS

RoHS :

Details

Frequency (Center/Band) :

1.561GHz, 1.575GHz, 1.602GHz

Number of Bands :

3

Features :

Cable - 3m

Termination :

SMA Male

Product Status :

Active

Type :

Passive Antenna

Brand :

Molex

Height :

16.7mm

Length :

55 mm

Connector Type :

SMA

Cable Length :

3 m

Antenna Type :

Module

Package :

Box

Mounting Style :

Magnetic Mount

Mounting Type :

Magnetic

Minimum Operating Temperature :

- 40°C

Power Rating :

2 W

Antenna Connector Type :

SMA Male

Base Product Number :

213499

Product Category :

Antennas

Dimensions :

55 x 47 x 16.7mm

Frequency Range :

1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz

Width :

47 mm

Center Frequency :

1561.098 MHz, 1575.42 MHz, 1602 MHz

Product Type :

GPS Antennas - GNSS, GLONASS, Galileo, Beidou

Maximum Operating Temperature :

85°C

Manufacturer :

Molex

Cable Type :

3 M RG174

Product :

Outdoor Antennas

Series :

213499

Packaging :

Bulk

Impedance :

50 Ohms

Termination Style :

Connector

Lead Length :

3000mm

Subcategory :

Antennas

Style :

Panel

Return Loss :

-10dB

RF Family/Standard :

Navigation

For Use With :

GNSS Module, Smart Transportation

VSWR :

-
