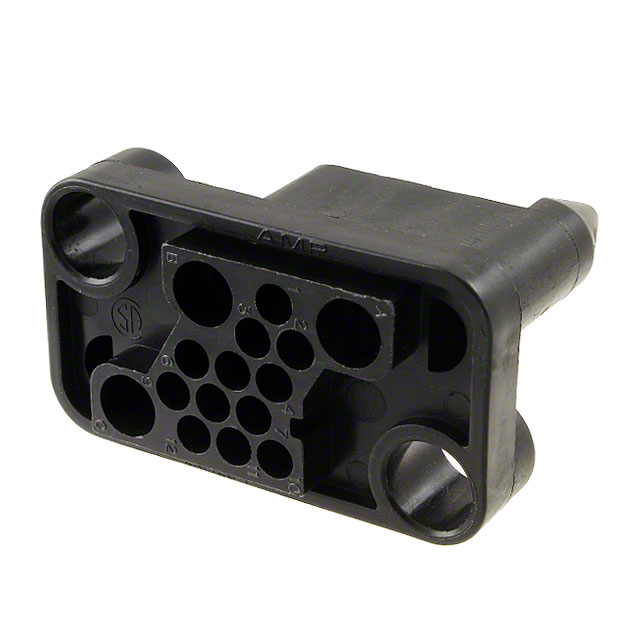

213426-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Backplane Connector Housings

Depth :

40.89mm

Row Spacing :

4.39 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Panel Thickness :

2.3114mm

Wire/Cable Type :

Discrete

Contact Finish - Mating :

NOT SPECIFIED

Pbfree Code :

yes

MIL Conformance :

No

Housing Material :

Polyester

Number of Positions :

15 (Coax or Power)

Reliability :

COMMERCIAL

Connector Style :

Drawer

RoHS Status :

RoHS Compliant

Max Operating Temperature :

130°C

Contact Style :

RND PIN-SKT

Voltage - Rated :

600V

IEC Conformance :

No

Approval Agency :

UL

Number of Conductors :

ONE

Connector Type :

Housing for Female Sockets

UL Flammability Code :

94V-0

Filter Feature :

No

Contact Gender :

Male

Length :

60.96mm

Width :

54.9148mm

Empty Shell :

No

Number of Contacts :

15

Option :

GENERAL PURPOSE

Series :

Metrimate

Connector Usage :

PLUG

Factory Lead Time :

4 Weeks

Body Breadth :

2.162 inch

VDE Tested :

yes

Number of Rows :

5

Max Voltage Rating (AC) :

600V

Contact Material :

Copper

Mounting Type :

Panel Mount

Lead Free :

Lead Free

Mount :

Panel

Contact Plating :

Gold

Max Current Rating :

14A

Shell Material :

Plastic

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Published :

1999

Feature :

Guide Pin

Mixed Contacts :

No

Flammability Rating :

UL94 V-0

Min Operating Temperature :

-55°C

Height :

30.6832mm

Note :

Contacts Not Included

Reference Standard :

UL

Operating Supply Voltage :

600V

Packaging :

Bulk

Orientation :

Straight

Pitch :

0.200 5.08mm

Color :

Black

DIN Conformance :

No

Termination :

Solder

Mating Information :

213427-1
