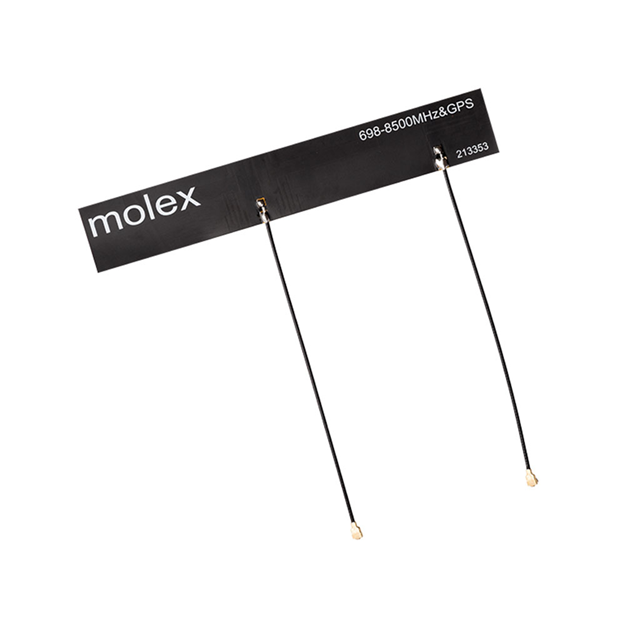

2133530150
Or copy the link below:
- Mfr.Part #
- 2133530150
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- LTE/GPS COMBO FLEXIBLE ANTENNA 1
- Stock
- 1,823
- In Stock ：
- 1,823
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- RF Antennas
- Return Loss :
- -5dB, -10dB
- Series :
- 213353
- Center Frequency :
- 698 MHz, 1400 MHz, 1500 MHz, 1700 MHz, 3300 MHz, 4400 MHz, 5900 MHz
- Type :
- MIMO Antenna
- Antenna Connector Type :
- IPEX MHF
- Cable Length :
- 150 mm
- Termination :
- U.FL (UMCC), IPEX MHF
- Product Status :
- Active
- Mounting Type :
- Adhesive
- Base Product Number :
- 213353
- Manufacturer :
- Molex
- Product Type :
- Multiband Antennas
- Height (Max) :
- 0.004" (0.10mm)
- Brand :
- Molex
- Antenna Type :
- Flat Patch
- VSWR :
- -
- Polarization :
- Linear
- Style :
- T-Bar Flex
- Frequency (Center/Band) :
- 829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz
- Mounting Style :
- Adhesive Mount
- Subcategory :
- Antennas
- RoHS :
- Details
- Product :
- PCB Antennas
- Height :
- 0.1 mm
- Length :
- 119.4 mm
- Ingress Protection :
- -
- Frequency Group :
- Wide Band
- Packaging :
- Bulk
- Applications :
- Beidou, GLONASS, GPS, LTE, UWB
- Package :
- Bag
- Gain :
- 2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi
- Features :
- Cable - 150mm
- Product Category :
- Antennas
- Width :
- 19.4 mm
- Termination Style :
- Connector
- RF Family/Standard :
- Cellular, Navigation
- Cable Type :
- 150 mm Coax
- Frequency Range :
- 698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz
- For Use With :
- U.FL/I-PEX MHF Connectors
- Number of Bands :
- 10
- Datasheets
- 2133530150
10 Bands Flat Patch Wide Band Adhesive U.FL (UMCC), IPEX MHF 829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz 2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi Bulk 0.004" (0.10mm) Beidou, GLONASS, GPS, LTE, UWB
2133530150 Overview
RF Antenna can be used in a variety of applications due to its MIMO Antenna type.As it has a Adhesive value, it can be used for general RF Antennas.This is a Antenna RF from the 213353 series.There is a Bulk solid enclosure around the RF modulator.
2133530150 Features
Type of MIMO Antenna
With Adhesive
213353 series
2133530150 Applications
There are a lot of Molex
2133530150 RF Antennas applications.
- Rectifiers
- Inverters
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
- GLONASS
