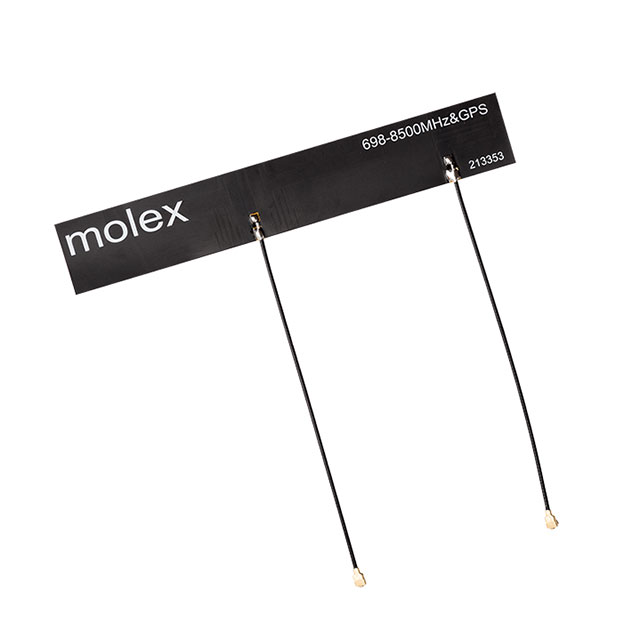

2133530100

Manufacturer :

Molex

Product Category :

RF Antennas

Width :

19.4 mm

Height (Max) :

0.004 (0.10mm)

Antenna Connector Type :

IPEX MHF

Features :

Cable - 100mm

Rad Hardened :

No

Product :

PCB Antennas

Input Power :

-

Ingress Protection :

-

Input Impedance :

50Ohm

Frequency Range :

698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz

For Use With :

U.FL/I-PEX MHF Connectors

Return Loss :

-5dB, -10dB

Package :

Bag

Cable Length :

100 mm

Termination Style :

Connector

Dimensions :

119.4 x 19.4 x 0.1mm

Product Status :

Active

Style :

T-Bar Flex

Series :

213353

RoHS :

Details

Type :

MIMO Antenna

Termination :

U.FL (UMCC), IPEX MHF1

RF Family/Standard :

Cellular, Navigation

Mounting :

Adhesive

Frequency Group :

Wide Band

Length :

119.4 mm

Frequency (Center/Band) :

829MHz, 1.45GHz, 1.6GHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz

Gain :

2.3 dBi, 2.5 dBi, 4.5 dBi, 5.4 dBi, 7 dBi

Antenna Type :

Combo

Antenna Mounting :

Adhesive

Applications :

Beidou, GLONASS, GPS, LTE, UWB

Cable Type :

100 mm Coax

VSWR :

-

Number of Bands :

10 Band

Polarization :

Linear

Center Frequency :

698 MHz, 1400 MHz, 1500 MHz, 1700 MHz, 3300 MHz, 4400 MHz, 5900 MHz

Antenna Gain :

7DBI

Base Product Number :

213353

Mounting Type :

Adhesive

Mounting Style :

Adhesive Mount

Packaging :

Bulk

Height :

0.1 mm
