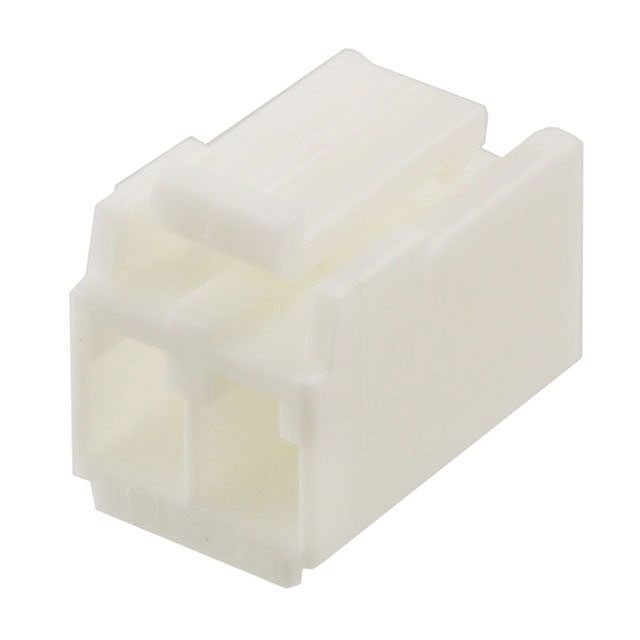

2132813-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Contact Current Rating :

11A

UL Flammability Code :

94V-0

Contact Retention :

Without

Mixed Contacts :

No

Width :

13.3096mm

Operating Supply Voltage :

600V

Contact Termination :

Crimp

Max Voltage Rating (AC) :

600V

RoHS Status :

RoHS Compliant

IEC Conformance :

No

Fastening Type :

Latch Holder

Packaging :

Bulk

Reference Standard :

UL

Height :

10.9982mm

Length :

13.2842mm

Contact Type :

Female Socket

Option :

GENERAL PURPOSE

Filter Feature :

No

Contact Material :

Bronze

DIN Conformance :

No

Wire Gauge (Max) :

22 AWG

Insulation Diameter :

2.9972 mm

Wire Gauge (Min) :

16 AWG

Note :

Contacts Not Included

Pitch :

0.156 3.96mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Mount :

Cable, Free Hanging

Number of Rows :

1

Housing Material :

Nylon

Published :

2010

Total Number of Contacts :

2

Color :

Natural

Min Operating Temperature :

-67°C

Depth :

13.3mm

Factory Lead Time :

16 Weeks

Orientation :

Straight

Series :

Economy Power II

Connector Type :

Receptacle

Wire/Cable Gauge :

22 AWG

Number of Positions :

2

Body Breadth :

0.433 inch

ELV :

Compliant

Sealable :

No

HTS Code :

8536.69.40.30

Max Operating Temperature :

221°C

Mounting Type :

Free Hanging (In-Line)

ECCN Code :

EAR99

Lead Free :

Lead Free

REACH SVHC :

Unknown

Empty Shell :

No

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Number of Conductors :

ONE

Flammability Rating :

UL94 V-0
