2132630-1
Or copy the link below:
- Mfr.Part #
- 2132630-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 120POS PCB
- Stock
- 40,491
- In Stock ：
- 40,491
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Factory Lead Time :
- 10 Weeks
- Circuit Application :
- Signal
- Contact Plating :
- Gold, Tin
- Gender :
- Male
- Make First / Break Last :
- No
- Orientation :
- Vertical
- Stackable :
- No
- Number of Contacts :
- 120
- Length - Tail :
- 1.4mm
- Max Operating Temperature :
- 185°C
- Connector Type :
- Header, Male Pins
- Series :
- Impact
- Voltage - Rated :
- 30V
- Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polymer
- Number of Positions Loaded :
- All
- Max Current Rating :
- 750mA
- Contact Current Rating :
- 750mA
- Number of Signal Positions :
- 80
- Termination :
- Press-Fit
- Operating Temperature :
- -55°C~ 85°C
- Differential Pairs per Column :
- 4
- Impedance :
- 100Ohm
- Current Rating (Amps) :
- 0.75A
- Length :
- 21.5011mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Ground Positions :
- 40
- PCB Thickness :
- 3mm
- Color :
- Black
- Connector Style :
- Impact
- Number of Columns :
- 10
- Width :
- 20.8026mm
- Min Operating Temperature :
- -67°C
- Mating Alignment :
- With
- Differential Signaling :
- yes
- Number of Rows :
- 12
- Sealable :
- No
- Current Rating :
- 750mA
- Row Spacing :
- 1.15 mm
- Housing Color :
- Black
- PCB Mounting Orientation :
- Vertical
- Material Flammability Rating :
- UL94 V-0
- Contact Style :
- Press-Fit
- Pitch :
- 1.905mm
- Max Voltage Rating (AC) :
- 120V
- Shrouding :
- Partially Shrouded
- Height :
- 11.95mm
- Hole Diameter :
- 381 µm
- Operating Supply Voltage :
- 30V
- Packaging :
- Tube
- Number of Positions :
- 120
- Plating Thickness :
- 1.52μm
- Mounting Type :
- Through Hole
- Number of Pairs :
- 40
- Contact Finish :
- Gold
- Depth :
- 20.8mm
- Data Rate :
- 25 Gbps
- Underplate Material :
- Nickel
- ELV :
- Compliant
- Published :
- 2014
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Datasheets
- 2132630-1

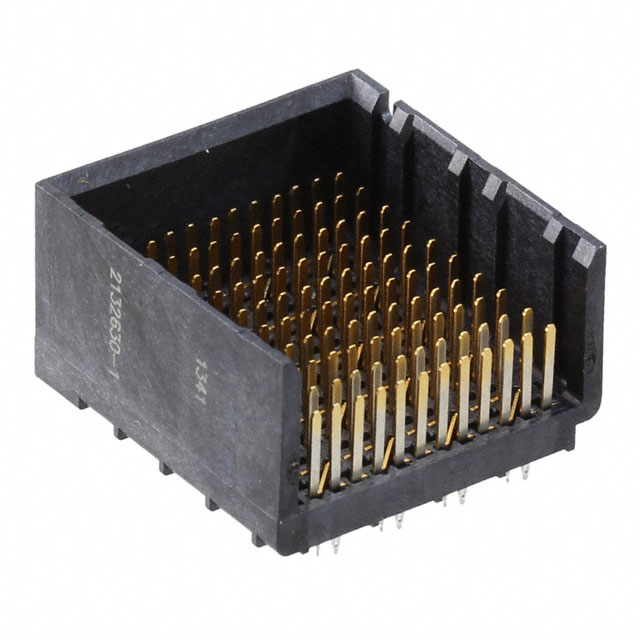

Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 120 Positions Pitch: 1.905mm -55°C~ 85°C Tube Through Hole
2132630-1 Overview
The product comes in a package of Header, Male Pins.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Impact Series.Use it when the temperature is below 185°C.Temperatures below -67°C are required for this device to operate.It operates at an operating temperature of -55°C~ 85°C.As long as the supply voltage is 30V, this Backplane Connector is functional.
