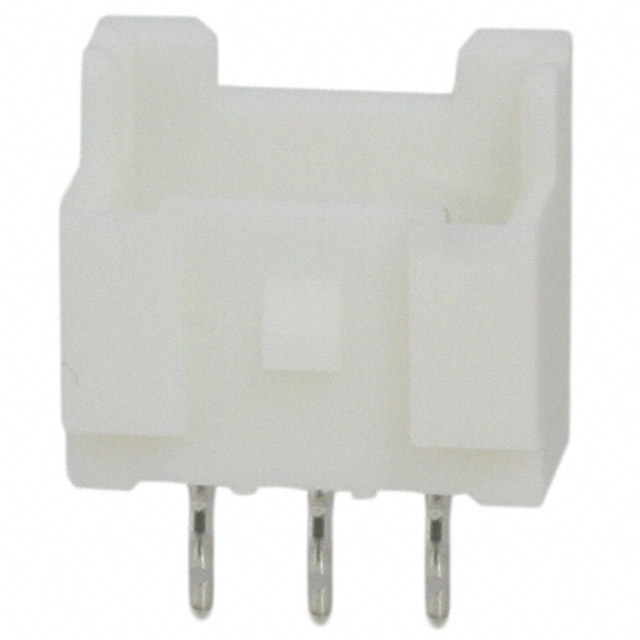

2132415-3
Or copy the link below:
- Mfr.Part #
- 2132415-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.5MM
- Stock
- 5,845
- In Stock ：
- 5,845
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Max Voltage Rating (AC) :
- 250V
- Pitch - Mating :
- 0.098 2.50mm
- Operating Supply Voltage :
- 250V
- Contact Shape :
- Circular
- Housing Material :
- Nylon
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Through Hole
- Voltage - Rated AC :
- 250V
- Height :
- 8.7884mm
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Mount :
- Through Hole
- PCB Mount Alignment :
- Without
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Fastening Type :
- Friction Lock
- Contact Current Rating :
- 4.2A
- Connector Type :
- Header
- Number of Rows :
- 1
- Number of Positions :
- 3
- Length - Tail :
- 3.4mm
- Sealable :
- No
- REACH SVHC :
- No SVHC
- Gender :
- Male
- Factory Lead Time :
- 21 Weeks
- PCB Mount Retention :
- With
- Published :
- 2004
- Contact Finish - Mating :
- Tin
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Contact Length - Mating :
- 0.141 3.60mm
- Length :
- 12.446mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 6.4mm
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Depth :
- 6.4mm
- ELV :
- Compliant
- ECCN Code :
- EAR99
- Operating Temperature :
- -55°C~105°C
- Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Housing Color :
- Natural, White
- Circuit Application :
- Power
- Shrouding :
- Shrouded - 4 Wall
- Series :
- Economy Power 2.5
- Voltage - Rated :
- 250VAC
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.134 3.40mm
- Number of Positions Loaded :
- All
- Current Rating :
- 3A
- Applications :
- General Purpose, Industrial, Lighting
- Insulation Color :
- Natural
- Termination :
- Kinked Pin, Solder
- Contact Style :
- Straight
- Plating Thickness :
- 2.03μm
- Material Flammability Rating :
- UL94 V-0
- Mating Post Length :
- 3.6068mm
- Packaging :
- Bulk
- Contact Type :
- Male Pin
- PCB Thickness :
- 1.6002mm
- Insulation Height :
- 0.346 8.80mm
- Datasheets
- 2132415-3
Economy Power 2.5 Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.346 8.80mm Height
2132415-3 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Economy Power 2.5 Series.A possible application for the device is General Purpose, Industrial, Lighting.Through Hole is used to mount the part.The operating supply voltage of this memory is 250V.In this case, the device operates at -55°C~105°C Operating Temperature.
2132415-3 Features
Economy Power 2.5 series
2132415-3 Applications
There are a lot of TE Connectivity AMP Connectors
2132415-3 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
